Lecture 11

Blockchain and cryptocurrencies

alt text

What is a Blockchain?

A digital database containing information (such as records of financial transactions) that can be simultaneously used and shared within a large decentralized, publicly accessible network. also : the technology used to create such a database.

A blockchain is a digital record of transactions. The name comes from its structure, in which individual records, called blocks, are linked together in a single list, called a chain. Blockchains are used for recording transactions made with cryptocurrencies, such as Bitcoin, and have many other applications.

Stuart Haber Co-Inventor of Blockchain

Bitcoin: A Peer-to-Peer Electronic Cash System

Abstract. A purely peer-to-peer version of electronic cash would allow online payments to be sent directly from one party to another without going through a financial institution. Digital signatures provide part of the solution, but the main benefits are lost if a trusted third party is still required to prevent double-spending. We propose a solution to the double-spending problem using a peer-to-peer network. The network timestamps transactions by hashing them into an ongoing chain of hash- based proof-of-work, forming a record that cannot be changed without redoing the proof-of-work. The longest chain not only serves as proof of the sequence of events witnessed, but proof that it came from the largest pool of CPU power. As long as a majority of CPU power is controlled by nodes that are not cooperating to attack the network, they'll generate the longest chain and outpace attackers. The network itself requires minimal structure. Messages are broadcast on a best effort basis, and nodes can leave and rejoin the network at will, accepting the longest proof-of-work chain as proof of what happened while they were gone.

alt text

alt text

Double spend problem

Ann has $100 and she wants to buy a lamp and a table. They each cost $100, so she should only be able to buy one item. No problem in day-to-day transaction since goods and money are exchanged together.

In case of distributed systems Alice broadcasts the transaction on the network so that every node on the network is made aware that “Alice has used up $100 to buy a lamp”.

Trust the data

“The truth isn’t a thing of fact or reason. It is simply what everyone agrees on.”

Gregory Maguire, Wicked: The Life and Times of the Wicked Witch of the West

Two General's Problem

Proof of work

Cryptography Mailing List Bitcoin P2P e-cash paper 2008-11-13 22:56:55 UTC James A. Donald wrote:

It is not sufficient that everyone knows X. We also need everyone to know that everyone knows X, and that everyone knows that everyone knows that everyone knows X

Proof of Work like proposed by Satoshi doesn't solve the Two Generals Problem or the more generic Byzantine Generals Problem. It's a probabilistic solution to the Byzantine Generals Problem, which means the confidence that a consensus is reached is growing with every block added to the chain, but it never reaches 100%. https://ethereum.stackexchange.com/questions/40213/how-is-the-two-generals- problem-solved-with-proof-of-work

alt text

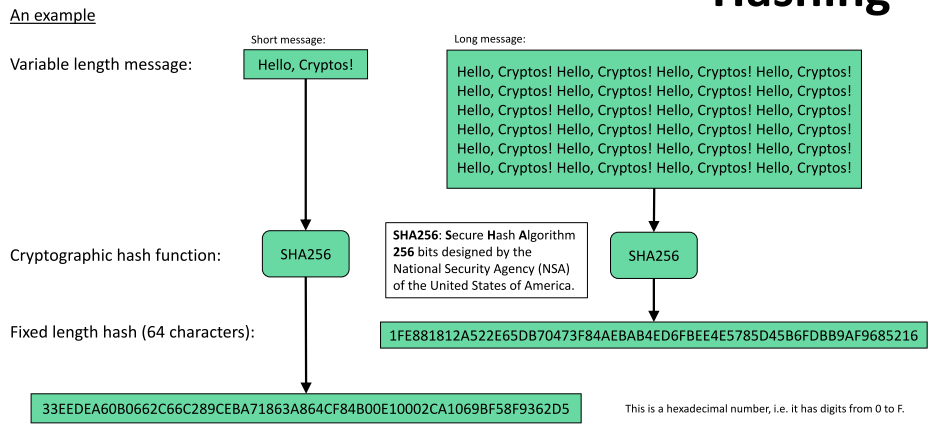

Hashing vs Encryption

alt text

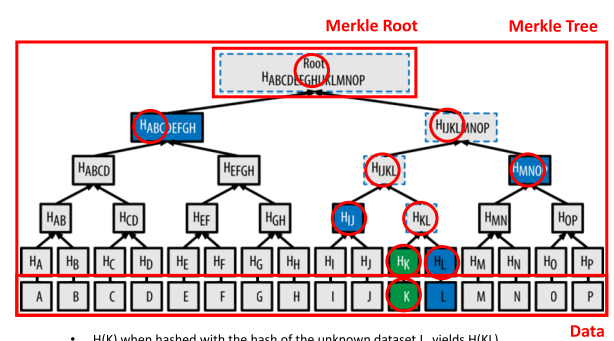

Merkle Trees

Merkle trees are named after Ralph Merkle, who proposed them in a 1987 paper titled "A Digital Signature Based on a Conventional Encryption Function." Merkle also invented cryptographic hashing.

In order to verify the inclusion of data [K], in the merkle tree root, we use a one way function to hash [K] to obtain H(K). In order to validate the inclusivity of K, K doesn’t have to be revealed, similarly the hash of data L can be revealed without any implicit security repercussions and so on.

alt text

The golden nounce

A nonce (“number used once”) is a 32-bit (4-byte) unsigned integer (0 to 2^32-1 = 4,294,967,295)

alt text

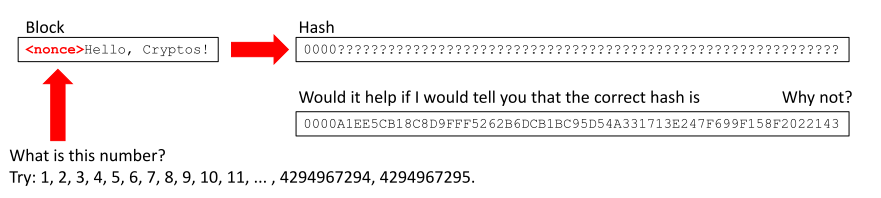

Try it yourself

Use the website https://passwordsgenerator.net/sha256-hash-generator/ to create a SHA256 hash that has 4 zeroes at the beginning for the following block: "Hello, Cryptos!" by inserting a nonce before the text inside the block.

So, in different words, find a number that, followed by the text "Hello, Cryptos!" results in a hash that starts with "0000"

alt text

Now imagine doing this with 32 leading zeros! That's why it's sometimes referred to as a "mathematical puzzle" and this is The Proof of Work!

Proof Of Work

The essence of the proof of work consensus mechanism is to provide evidence that the majority of nodes agree and do not lie. A proof of work verification is difficult, costly, and time-consuming to create, but easy to verify. Bitcoin is secure because it is computationally infeasible to attack the network. Requiring Proof of Work for participation is central to this property. Hence Bitcoin relies on computational work on cryptographic challenges as the basis for trust.

alt text

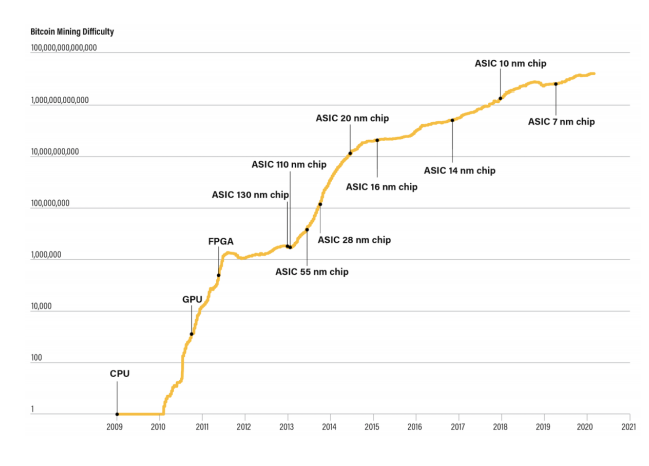

Increase of Difficulty over Time

CPU (central processing unit) GPU (graphics processor) FPGA (Field Programmable Gate Arrays) ASIC (specialized hardware)

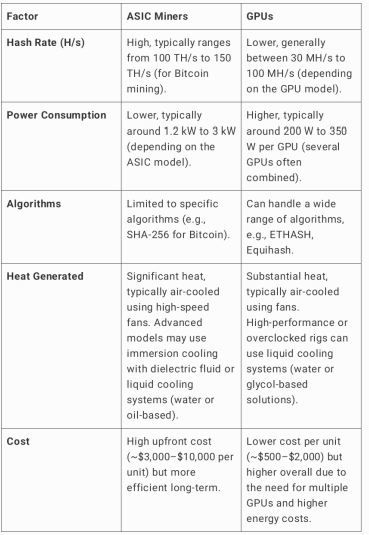

ASIC vs GPU miners

alt text

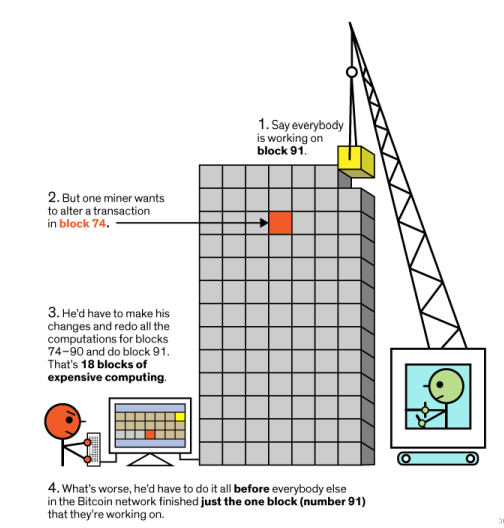

Why you can't cheat a bitcoin

alt text

What is the reward?

The winning miner claims a block reward by adding it as a first transaction on the block. At inception, each bitcoin block reward was worth 50 BTC. The block reward is halved after the discovery of every 210,000 blocks, which takes around four years to complete. As of February 2019, one block reward was worth 12.5 BTC.

In November of 2019, the price of Bitcoin was about $9,300 per bitcoin, which means you'd earn 12.5BTC * $9,300/BTC = $116,250 for completing a block. In May 2020, the number of bitcoins (BTC) entering circulation every 10 minutes dropped by half again from 12.5 to 6.25.

The next halving will likely occur in 2024. The maximum and total amount of bitcoins that can ever exist is 21 million. There are 2,512,225.0 bitcoins left to be mined.

When all 21 million bitcoins are mined, there won't be a block reward to pay to miners. When a Bitcoin user sends a BTC transaction, a small fee is attached. These fees go to miners and this is what will be used to pay miners instead of the block reward.

CSIRO IT contractor spared jail for mining Monero on supercomputer

Intensive correction order imposed for 15 months. A former CSIRO IT contractor has escaped jail time for using the country’s peak science and research organisation’s supercomputer to mine cryptocurrency. Jonathon Khoo was sentenced to a 15-month intensive correction order at Sydney’s Downing Centre Local Court on Friday after pleading guilty to the charges. Khoo was charged by the Australian Federal Police in May 2019 for modifying the computer systems of CSIRO without authorisation to access the processing power. The charges included unauthorised modification of data to cause impairment and unauthorised modification of restricted data. Magistrate Erin Kennedy on Friday said Khoo had installed and run 2903 command scripts into CSIRO’s two high performance computers (HPC) and the Claymore Dual Miner software. In doing so, Khoo generated $9,422 worth of cryptocurrency mining proceeds in the form of Ethereum and Monero. While there was no “impairment to the CSIROs” operations, Kennedy said the use of the systems for period of just over a month in duration reduced the performance of the HPC. She said the HPC was also used by the Royal Australian Navy and Victor Chang Cardiac Research Institute. CSIRO put the total cost of the HPCs reduced capacity at $76,668, including hardware and software. Kennedy described the offence as "reckless" with "some level of planning", but acknowledged Khoo's remorse. She also noted that Khoo had admitted his guilt to police almost immediately after a search warrant was executed in 2019. Khoo was handed a 15-month intensive correction order - a custodial sentence served in the community - with 300 hours of community service. By Justin Hendry Sep 18 2020 1:15PM

Physical Bitcoins?

Mike Caldwell and his Casascius coin. Caldwell started minting his coins a couple of years ago, but late last year he was banned from selling pre-funded coins.

The US Financial Crimes Enforcement Network (FinCEN) classified his activities as ‘money transmitting’ and Caldwell was forced to start selling empty coins. Sales resumed earlier this year and Casascius is currently listing three coins, along with a gold-plated savings bar. However, none of them are priced and it is unclear whether or not Casascius simply ran out of stock or stopped selling them directly altogether.

In addition to these silver, brass and gold-plated products, Casascius also sells aluminium promo coins. A bag of 500 costs 0.39 BTC.

Some additional Facts
