Lecture 1

Running Time

• Algorithms transform input data into output data
• Running time of an algorithm typically grows with input size
• Average case time is often difficult to determine
• We focus on the worst case running time
  • easier to analyse
  • crucial for many real-world applications

Best, Average and Worst Cases

Given a list of unsorted numbers, L, and a specific number, k, Return true if k is in L, or false otherwise.

Consider the following algorithm to solve this problem:

def number_exists(L, k):
    for item in L:
        if item == k:
        return True
    return False

How Can We Analyse Algorithms?

• Experimental (empirical) studies
  • Write program implementing the algorithm
  • Run program with inputs of varying size and composition
  • Use a method like time.time() to measure actual running time
  • Plot the results
  • Limitations:
    • Need to implement the algorithm
      • May be difficult, time consuming, …
    • Time may differ based on the implementation
      • Example: Finding the maximum element in a list
    • Time may differ based on the hardware
    • Results may not be indicative of the running time on other inputs not included in the experiment
      • How do I know if my inputs are best, average, or worst case?
• Theoretical analysis
  • Use a high-level description of the algorithm
    • instead of an implementation
  • Characterise running time as a function of input size n
  • Takes into account all possible inputs
    • at least those that are “bad” (hence, worst-case)
  • Evaluation is independent of the hardware and software environment!

Theoretical Analysis Steps:

1. Express algorithm as pseudo-code
   • Example: Find maximum element of an array

Algorithm arrayMax(A, n)

    Input array A of n integers
    Output maximum element of A
    currentMax <- A[0]
    i <- 1
    while i < n do
        if A[i] > currentMax then
            currentMax <- A[i]
        i <- i + 1
    return currentMax

2. Count primitive operations

• Assume word RAM model in this course.
• IMPORTANT:
  • A word is a sequence of w bits (most of our computers have w = 64 bits)
  • Basic arithmetic operations take a single operation
    • (+ - % * //) and so on
  • Bitwise operands take a single operation
    • &, |, <<, >>, …
  • Comparisons take a single operation
    • (>, <, ==, !=)
  • Accessing or writing a word in memory takes a single operation
  • Most modern computers are byte addressable
    • Need to be able to access every memory “cell” limits memory size
    • w ≥ #bits required to represent the largest memory address
  • Example:
  • num = 10 - 1 operation. Assigning a value to a variable
  • num = A[10] - 2 operations. Indexing into an array, and then assigning a value to a variable
  • while i < 10 - 1 operation per iteration + 1
  • Loops:

for i in range (10) # 1 + (n + 1)
    let counted operations = X  # n * X
    # count increment   # n

• int i = 0 is executed once
• i < n conditional is evaluated n + 1 times
• i++ increment is evaluated n times

1. Describe algorithm as $f(n)$

• function of $n$ (the input size)
• By inspecting the pseudo-code, we can determine the maximum number of primitive operations executed by an algorithm, as a function of the input size

2. Perform asymptotic analysis

• express in asymptotic notation

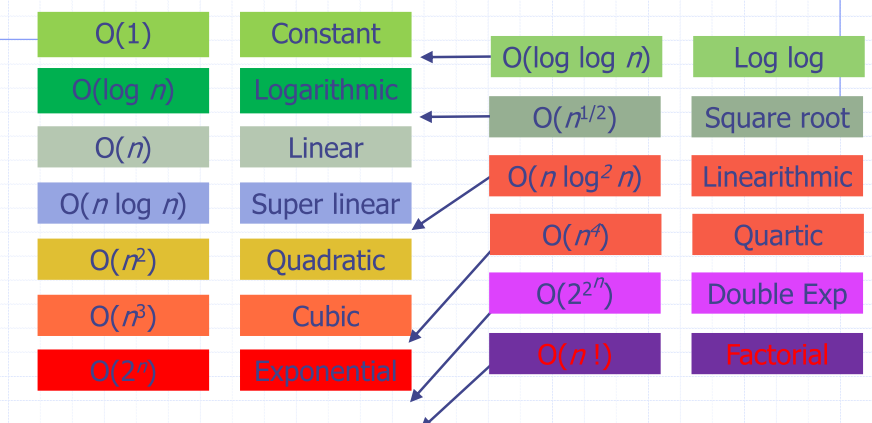

• Seven functions that often appear in algorithm analysis

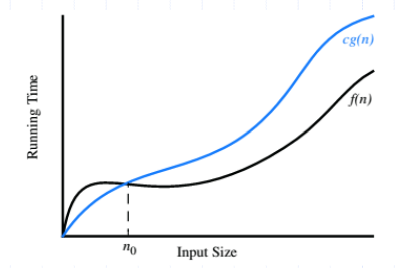

Big O-notation

• Big-O notation describes an upper bound on a function
• $f(n)$ is $O(g(n))$ if $f(n)$ is asymptotically less than or equal to $g(n)$ That is,

Given functions $f(n)$ and $g(n)$, we say that $f(n)$ is $O(g(n))$ if there are positive constants $c$ and $n_{0}$ such that

$$f(n) \le c \cdot g(n) \; \; \text{for} \; \; n \ge n_{0}$$

Big-O and growth rate

• Big-O notation gives an upper bound on the growth rate of a function
• “f(n) is O(g(n))” means the growth rate of f(n) is no more than the growth rate of g(n)
• Big-O notation ranks functions according to their growth rate

Some big-O rules

Rule 1: If f(n) is a polynomial of degree d, then f(n) is $O(n^{4})$

• We can drop lower-order terms
• We can drop constant factors (coefficients) eg. $3n^{4} + 7n^{3} + 5$ is $O(n^{4})$

Rule 2: Use the smallest possible class of functions (the “tightest” possible bound)

• “2n is O(n)” instead of “2n is $O(n^{2})$”, even if the latter is still mathematically correct…
• Quiz gotcha: Is “8n is $O(n^{3})$”?

Rule 3: Use the simplest expression of the class

• “3n + 5 is O(n)” instead of “3n + 5 is O(3n)”

Operations:

Some more operations

Big Omega notation

• Big-Omega notation describes a lower bound on a function
• f(n) is $\Omega (g(n))$ if $f(n)$ is asymptotically greater than or equal to $g(n)$
• That is,

Given functions $f(n)$ and $g(n)$, we say that $f(n)$ is $\Omega (g(n))$ if there are positive constants $c$ and $n_{0}$ such that

$$f(n) \ge c \cdot g(n) \; \; \text{for} \; \; n \ge n_{0}$$

Big-Theta Notation

• Big-Theta notation describes a tight bound on a function (if one exists)
• $f(n)$ is $\Theta (g(n))$ if f(n) is asymptotically equal to g(n)
• That is,

Given functions $f(n)$ and $\Theta (n)$, we say that $f(n)$ is $\Theta (g(n))$ if there are positive constants $c_{1}, c_{2}$ and $n_{0}$ such that

$$c_{1} \cdot g(n) \le f(n) \le c_{2}\cdot g(n) \; \; \text{for all} \; \; n \ge n_{0}$$
