Lecture 4

Stacks

• Stores arbitary objects
  • linkedlist, list
• Insertion and deletions are LIFO
• Like a spring loaded plate dispenser
  • Insertions at the top of the stack
  • Removals from the top of the stack

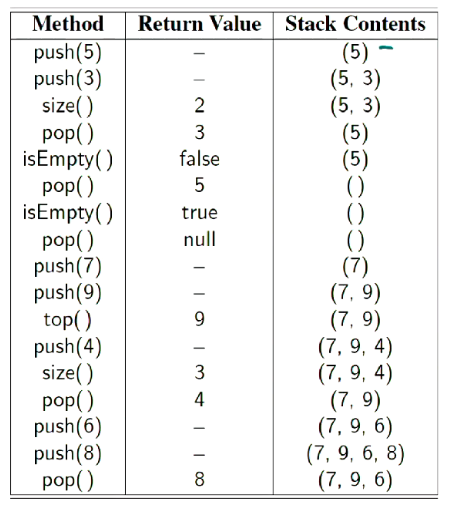

Stack ADT (operations)

• push(T)
• pop()
• T top()
• integer size()
• boolean isEmpty()

Array-base stack

• Simple stack implementation
• Add elements from left to right
• Variable keeps track of index of top element
  • index is the top of the stack

Algorithm size()
    return t + 1

Algorithm pop()
    if isEmpty() then
        throw NoSuchElementException
    else
        t <- t - 1
        return S[t+1]

• If I am using an array, use t to denote the index I'm up to
  • if I pop from the array, I set the last index to None and reduce the index t
• Stack should not be allowed to change anything that isn't the top element
• Fixed-array can become full
  • Push operations throws IllegalStateException
    • Limitation of array implementation
    • not intrinsic to the Stack ADT - only because we used an array as part of our ADT

Performance

• If we use a dynamic array, do we use a constant time for push
• Space is $O(n)$
• Each operations runs in $O(1)$
  • push to the back is $O(1)$ - we know where the back is, look it up and put the element there
  • Pop is also $O(1)$
• Typically the size (the number of elements on the stack) is maintained inside the structure

Other implementations

• We could use an extensible list

  • Amortised $O(1)$ push
  • $O(1)$ pop

• Could also use some sort of linked list

  • $O(1)$ push and pop
    • insert to the front in constant time

Queues

• Stores arbitary objects
• Insertions and deletions are FILO
• Think of a waiting line (queue)
  • insertions at the rear of the queue
  • Removals at the beginning of the queue

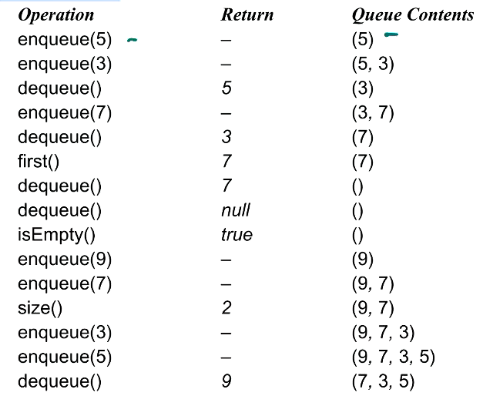

Queue operations

• enqueue(T)
• T dequeue()
• T first()
• integer size()
• boolean isEmpty()

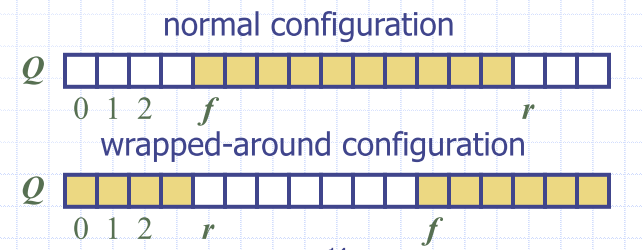

Array-Base queue

• Use an array of size $N$ in a circular fashion
• Two variables keep track of the front and size
  • $f$ index of the front element
  • $sz$ number of stored elements (size)
  • $r = (f + sz) \mod N$
  • $N=10, f=1, sz=8$

Operations

• Enqueue throws an exception if an array is full
  • implementation dependent (of having a full sized list)
• Uses modulo operator $mod$

The following are enqueue and dequeue operations

Algorithm enqueue(item)
    if size() = N then
        throw IllegalStateException
    else
    r <- (f + sz) mod N
    Q[r] <- item
    sz <- (sz + 1)

Algorithm deqeue()
    if isEmpty() then
        return null
    else
        item <- Q[r]
        f <- (f + 1) mod N
        sz <- (sz - 1)
        return item

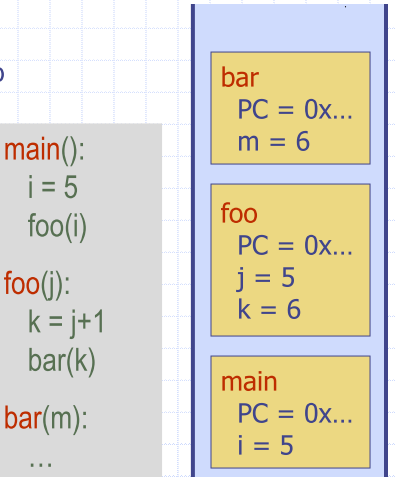

Programming: Call stacks

Programming languages use stacks to keep track of the current execution

• As methods are called, they are pushed to the call stack including information about the memory address of the instruction being executed (or the method being called) and the local variables required.

def reverse(inlist):
    stack = []
    for item in inlist:
        stack.append(item)
    i = 0
    while len(stack) > 0:
        inlist[i] = stack.pop()
        i += 1
    return inlist

reverse([1,2,3,4,5,6])
[6, 5, 4, 3, 2, 1]

• Also parentheses matching
• HTML Tag Matching

Application of Queues: Round Robin Scheduler

• Can be implemented using a queue Q repeately performing the following steps:
  1. e = Q.dequeue()
  2. Sevice element e
  3. Q.enqueue(e)

Iterators

• Structure, and ADT
• Facilitate scanning through a sequence of elements

Iterable interface

• Iterable has the following method
  • iterator()
• A python list is iterable
  • produces an iterator for its collection as the return value of the iterator() method

mylist = [“a”, “b”, “c”, “d”, “e”]
for element in mylist:
print(element)

a
b
…

x = iter(mylist) # <list_iterator object at 0x000…>
print(x)
<list_iterator object at 0x000…>
m = next(x)
print (m)
a
m = next(x)
print(m)
b

Implementing iterators

• Implement two methods in your class
• __iter__ returns the iterator object
• __next__ returns the next value and is called implicitly after each increment (in a “for element in thing” loop for example)

Class Counter:
    def __init__(self, low, high):
        self.current = low - 1
        self.high = high
    def __iter__(self):
        return self
    def __next__(self):
        self.current += 1
        if self.current < self.high:
            return self.current
        raise StopIteration

for c in Counter(3, 9):
    print(c)

Trees

Tree basics

• Abstract model of hierarchical structure
• Consists of nodes with a parent-child relation
  • parent is a node above other nodes of a tree
  • Graphs have no heirarchy or structure

Arthemtic Expression tree

• Leaf nodes are operands (numbers)
• parents are operators

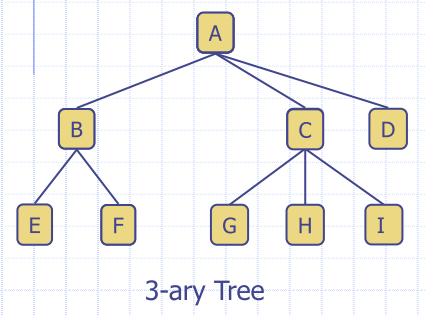

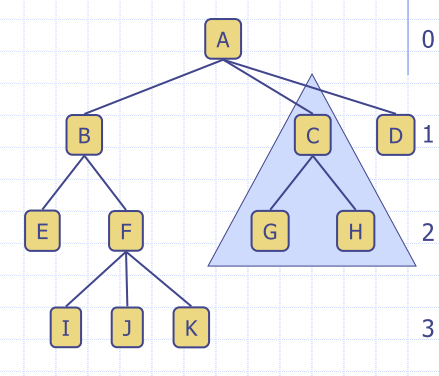

Tree terminology

binary Tree	k-ary tree

Tree properties

• If every internal node has at least 2 child nodes
  • If $l$ is a number of leaf nodes
  • Number of internal nodes is at most $l-1$
  • $1+2+4+...+2^{h-1}=2^{h}-1=l-1$

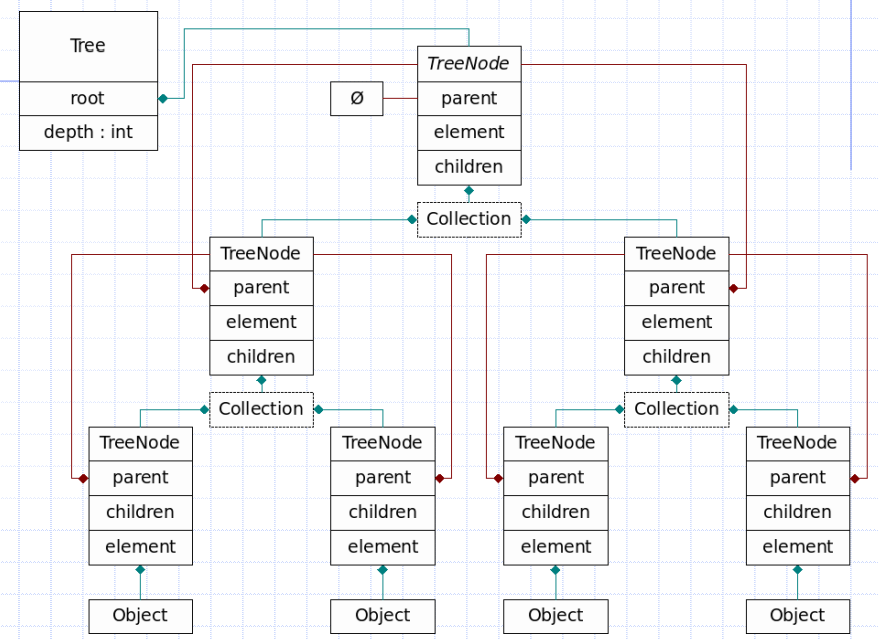

General Tree Structure

• Stores a pointer to it's parent
• Has a collection (container of 'stuff', list)

Tree ADT

• size()
• isEmpty()
• iterator()
• positions()

Accessor methods:

• root()
• parent(p)
• children(p)
• numChildren(p)

Query methods

• isInternal(p)
• isExternal(p)
• isRoot(p)

Tree CDT

C is 'concrete'. Common update methods

• replace(p,o)
• addRoot(o)
• remove(p)

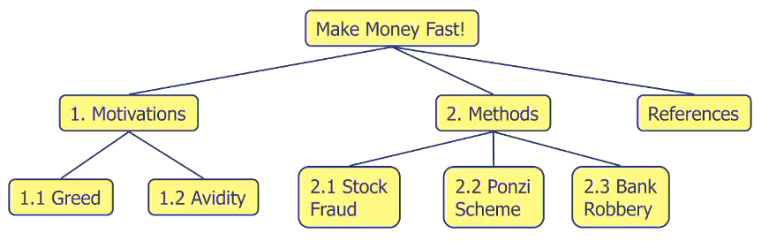

Preorder Traversal

• A node is visited before its descendants
  • Visit performs some task at the node
• Application: print a strcutured document

Algorithm preOrder(p)
    visit(p)
    for each child c of p
        preorder(c)

You would get the following:

• Make Money Fast!
• 1. Motivations
• 1.1 Greed
• 1.2 Avidity
• 2. Methods
• 2.1 Stock Fraud
• 2.1 Ponzi Scheme
• 2.3 Bank Robbery
• References

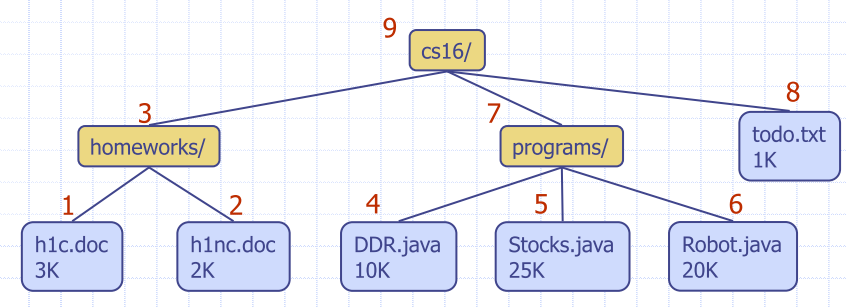

Postorder traversal

• A node is visited after its descendants

Algorithm postOrder(p)
    for each child c of p
        postOrder(c)
    visit(p)

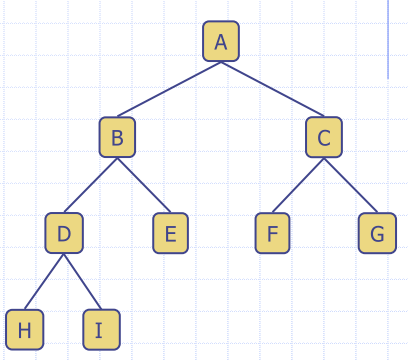

Binary Trees

• Each internal node has at most two children
  • Exactly two for a properr binary tree
• Internal node has a left child and right child
• Full level
  • level $l$ is full if it contains $2^{l}$ nodes
• Complete binary tree
  • for height $h$
  • Level $0, ...,h-1$ are full
  • In level $h$, all leaf nodes are as far left as possible
• Proper Binary tree
  • every node, except for leaves, has two children
  • also called a full binary tree

Properties of complete binary trees

• $h = O(\log n)$ with at least two nodes

Properties of proper binary trees

• $e = i + 1$
• $n = 2e − 1$
• $h \le i$
• $e \le 2 h$
• $h \ge \log_{2} e$
• $h \ge \log_{2} (n + 1) − 1$

Notation:

• n - number of nodes
• e - number of external nodes
• i - number of internal nodes
• h - height

Binary tree ADT

Additional methods:

Traversal - Inorder traversal

• A node is visited after its left subtree and before its right subtree
• There is no generic inOrder traversal methods for a k-ary tree

Print arithmetic expressions

• Print operand or operator when visiting node
• Print '(' before traversing left subtree
• print ')' after traversing right subtree

((2 * (a − 1)) + (3 * b))

Euler Tour Traversal

• Handle preorder, postorder and inorder traversals
• Each node (in a binary tree) is visited three times
  • blend different trvaersals to achieve more complex functionality

Linked Structure for Binary Trees

• Node stores
  • element
  • parent node
  • left child node
  • right child node

Array-Based Representation of Binary Trees

• Nodes are stored in an array A

• Node v is stored at A[rank(v)]

  • rank(root) = 0
  • if node is the left child of parent(node), rank(node) = 2 × rank(parent(node)) + 1
    • 2n + 1
  • if node is the right child of parent(node), rank(node) = 2 ×rank(parent(node)) + 2
    • 2n + 2

Breadth-first travsersal

• Visit all the nodes at depth $d$ before visiting nodes at depth $d+1$
• Visiting level by level
