Lecture 5

Priority queues

ADT

Each entry is a pair (key, value)
Main methods
- insert(k,v)
- removeMin()
Additional methods
- min()
- size(), isEmpty()
Queue
- FIFO
Priority Queue
- Elements are stored as Entries
- Entry with the highest priority is stored first

Alt text

An entry in a key is a key-value pair
Can override the less than $\lt$ operator to compare entries

class entry:
def __init__(self, k, v):
    self._key = k
    self._value = v

def __lt__(self, other):
    return self._key < other._key

def get_key(self):
    return self._key

Imposing a total order on your keys means that trees are representing a kind of ordered map
- however, true maps require key-uniqueness

Comparator ADT

# 2D coordinate class stub
class point:
    def __init__(self, x, y):
        self._x = x
        self._y = y

    def get_x(self):
        return self._x

    def get_y(self):
        return self._y

    # Less than ‘<‘ operator
    def __lt__(self, other):
        xa = self.get_x()
        ya = self.get_y()
        xb = other.get_x()
        yb = other.get_y()
    if xa == xb:
        return ya < yb
    return xa < xb

Sequence-based priority queue

Implementation with an unsorted list
- Insertion takes $O(1)$ time
- removemin() and min() take $O(n)$ time
Implementation with a sorted list
- Insert(p) take $O(n)$ time
- RemoveMin() and min() take $O(1)$ time

Heaps

Binary tree storing keys at its nodes and satisfying the following properties:
Heap order: the key of the node is $\ge$ $\geq$ the key of its parent
- $key(v) \ge key(parent(v))$
Has to be a complete binary tree
- at height $h$ , the internal nodes are to the left of the external nodes
Last node of a heap is the rightmost nodes of maximum depth

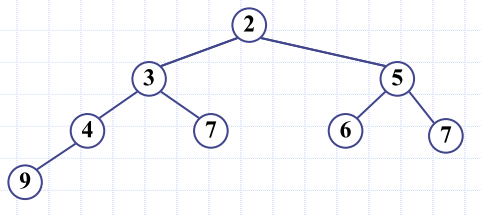

Heap properties

A heap can implement a priority queue
Store a (key, element) entry at each node
Keep track of the position of the last node

Insertion into a heap

Insert in the PQ ADT corresponds to inserting key $k$ into the heap
Insertion algorithm:
1. Find the insertion node $z$

Upheap

After inserting a new key $k$ , the heap-order property (child nodes must have keys >= their parents) may be violated
Upheap swaps k along an upward path from the insertion node, until k reaches the root or a node whose parent has a key less than or equal to k
Since a heap has height $O(\log n)$ $O (lo g n)$ upheap runs in $O(\log n)$ $O (lo g n)$ time
- worst case you swap all the way up the tree, which is length $\log n$

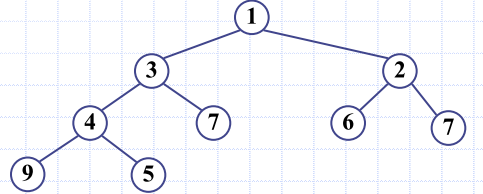

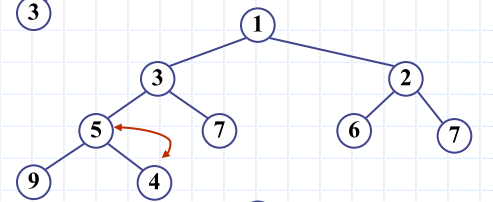

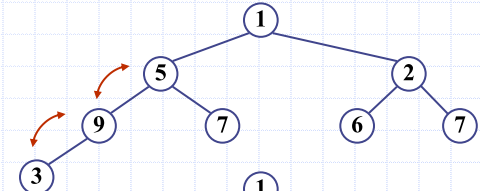

addition of key 3	addition of key 4	final result

removal from a heap

removeMin in the PQ ADT corresponds to removing the root key from the heap

Removal algorithm

Replace the root key with the key of the last node w
Remove w
Restore the heap-order property (downheap)

Downheap

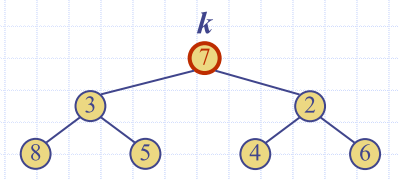

Downheap replaces root key with key k of the last node and swaps key k along a downward path from the root
- swaps with the smaller of the two keys
Because height of tree is $\log n$ , downheap runs in $O(\log n)$
removeMin() corresponds to removing the root (smallest key) from the heap
Algorithm:
- Swap the last position with the root, and retrieve the node

`removeMin`	intemediate step	result

Updating/Inserting another node

Insertion node can be found by traversing a path of O(log n) nodes, BUT
Depends on how the binary tree is implemented. With a linkedlist, $O( 2 \log n)$ (traversing up the tree and back down again)

Array-Based Heap Implementation

For a node at index $i$ $i$ :
- left child is at the index $2i+1$
- right child is at the index $2i + 2$
- removeMin() corresponds to removing/swapping at index $n-1$ , plus more swapping
- Upheap and downheap operating correspond to swapping

Heap-sort

Take $n$ items, insert and removeMin() in $\log n$ time
Heap-based priority queue can sort a sequence of $n$ elements in $n \log n$ time

Heap construction

Construct a heap containing $n$ items
Using Insert
- n calls give $O(n \log n)$ time
Special case construction by merging
- Bottom-up heap construction
- Better than O(n log n) or I wouldn’t be telling you about it!

Merging two heaps

Given two heaps and a key k
Create a new heap with the root node storing k and with the two heaps as subtrees
Perform downheap to restore the heap-order property

`initial`	add key: intemediate step	result

Can construct a heap storing n given keys using bottom-up construction with log n phases
In phase i, pairs of heaps with $2^{i} - 1$ keys are merged into heaps with $2^{i + 1} - 1$ keys
$2^{i} - 1 + 2^{i} - 1 = 2^{i + 1} - 1$

Analysis

Worst-case time of a downheap with a proxy path
- Worst case scenario is that a downheap opeation has to be performed for each merge
The total number of nodes of the proxy paths is $O(n)$
Bottom-up heap construction runs in $O(n)$ time

Summary:

Performance	artefact
$O(n)$	space
$O(n)$	build
$O(\log n)$	`getMin()`

Adaptable priority queues

Sometimes want to be able to remove any arbitrary element

ADT Adaptable Priority Queue

Method	Description
`remove(e)`	remove an arbitrary element (not necessarily the minimum or maximum)
`replaceKey(e, k)`	Essentially a priority update
`replaceValue(e, v)`	changing the value of the item

Alt text

Locating entries

remove(), replaceKey(e, v) and replaceValue(e, v) need fast ways of locating an entry $e$ in a priority queue
For instance, how would you locate the entry with key 11?

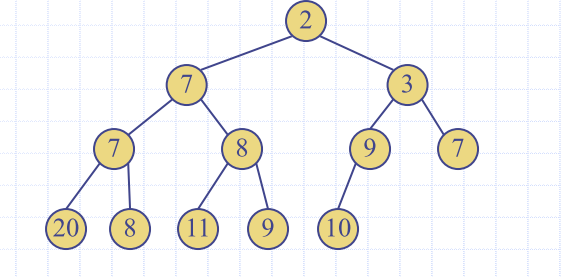

Alt text

Can search the entire queue
- Are faster methods
Position in the data structure

Location-Aware Entries

Locators can be used to keep track of elements as they are moved around inside a container
That is, keep “pointers” to keys inside the tree that follow each (key, value) node as they move around

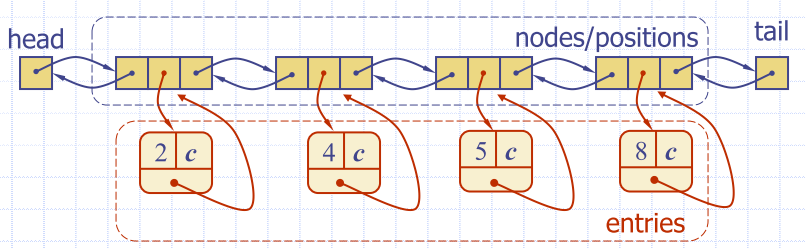

List implementation

Location-aware list entry is an object storing
- key
- value
- position (or rank) of the item in the list
In turn, the position (or array cell) stores the entry
Back pointers (or ranks) are updated during swaps

Alt text

List APQ Run time

remove(e) and replaceValue(e, x) take constant time
- Assuming you already have a reference to e
replaceKey(e, k) runs in O(n) time
- We get to the value in constant time, but we may need to traverse the container to find the correct new location
Achieve this using a hashmap implementation for example

Heap APQ Run Time

Operation	performance
`replaceValue(e, x)`	$O(1)$
`remove(e)`	$O(\log n)$
`replaceKey(e, k)`	$O(\log n)$

Performance

Improved times thanks to location-aware entries are highlighted in red

Method	Unsorted List	Sorted List	Heap
`size, isEmpty`	$O(1)$	$O(1)$	$O(1)$
`insert`	$O(1)$	$O(n)$	$O(\log n)$
`min`	$O(n)$	$O(1)$	$O(1)$
`removeMin`	$O(n)$	$O(1)$	$O(\log n)$
`remove`	$O(1)$	$O(1)$	$O(\log n)$
`replaceKey`	$O(1)$	$O(n)$	$O(\log n)$
`replaceValue`	$O(1)$	$O(1)$	$O(1)$

Min-heap vs maxheap

Min-heap

key(i) >= Key(parent(i))
can getMin() in constant time $O(1)$
removeMin() in $O(\log n)$ time

Can we do removeMin() in $O(1)$ ?

A: Yes, but mostly out of scope for this course. Generally (and a very interesting point)
You can never have both $O(1)$ $O (1)$ insert and $O(1)$ $O (1)$ removeMin in the same DS.
- Could sort in $O(n)$ . We have proven this is not possible

Maps

Searchable collection of key-value entries
Main operations
- searching, inserting and deleting items
Keys must be unique
- cannot have multiple entries with same key
Applications
- address book
- student-record database

Map-ADT

Function	Description
`get(k)`
`put(k, v)`
`remove(k)`
`size()`
`isEmpty()`
`entrySet()`	yield a collection of key/value pairs - python `items()`
`keySet()`	yield an collection of keys
`values()`	yield a collection of values

Use of Null as Sentinel

something we store when we don't have something there
- get, put and remove return null (None) if a requested entry is not present
None is a sentinel value
- Thus, we cannot store None as a key!
Alternative: throw an exception for a key that is not in the map

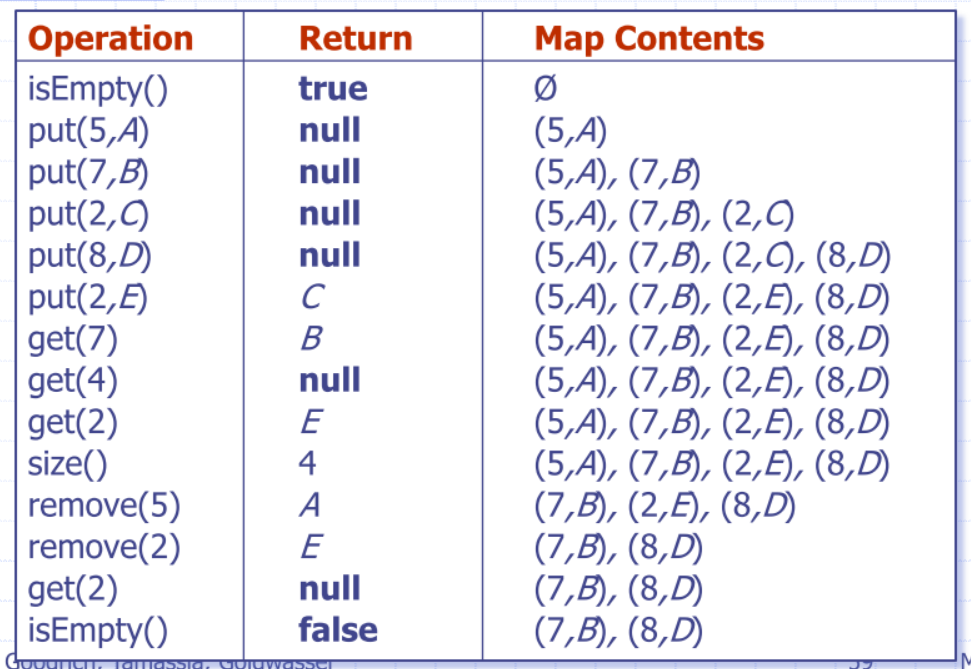

Alt text

put(2, e): this particular implementation returns the old value

Comparison with Earlier Data Structures

Priority queues and maps both store key-value pairs
- We call these key-value pairs entries-
Keys
- Map keys must be unique
- Priority queue allows multiple entries to have same key
  - Two or more elements may share the same priority of course!
Total order relation on keys
- Required for priority queues
- Optional for maps (may or may not be ordered)-
Accessing elements
- Maps allow access to any entry by key
- Priority queues allow access to highest priority element

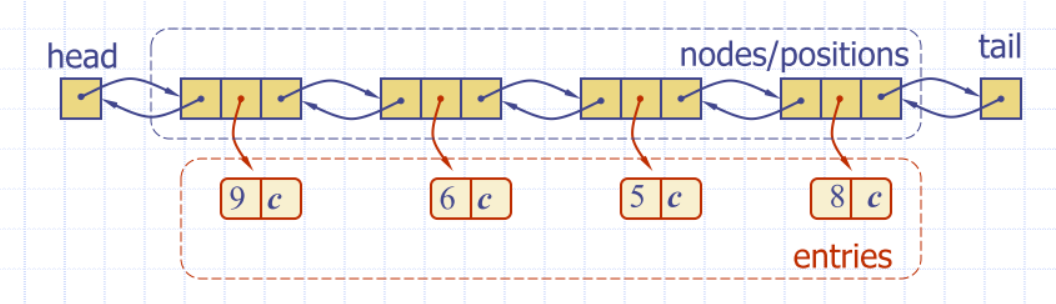

Simple List-Based Map

Implemented using an unsorted list

Store the items of the map in a list $S$ (based on a doubly-linked list), in arbitrary order

Alt text

How are you going to find the key?

get(k) Algorithm. Complexity: $O(n)$

Algorithm get(k):
  B = S.positions() {B is an iterator of the positions in S}
  while  B.hasNext()  do
    p = B.next() { the next position in B }
    if  p.element().getKey() = k  then
      return  p.element().getValue()
  return  null {there is no entry with key equal to k}

put(k) Algorithm. Complexity: $O(n)$

Algorithm put(k, v):
  B = S.positions()
  while  B.hasNext()  do
    p = B.next()
    if  p.element().getKey() = k  then
      t = p.element().getValue()
      S.set(p,(k,v))
      return  t {return the old value}
  S.addLast((k,v))
  n = n + 1  {increment variable storing number of entries}
  return  null {there was no entry with key equal to k}

Multimaps

Can store multiple entries with the same key
'Remove all the elements with a given key'

Sets

Set – unordered collection of elements, without duplicates
- elements of a set are like keys of a map, but without any auxiliary values
Multiset (alias Bag) – set-like container that allows duplicates
- Likely never need to use that, but could come in handy for prime factorisation. E.g. {2, 2, 2, 3, 5} = 120

Set ADT:

Function name	Description
`add(e)`	Adds the element e to S (if not already present)
`remove(e)`	Removes the element e from $S$ if present
`contains(e)`	Returns whether e is an element of S
`iterator()`	Returns an iterators of the elements of S
`addAll(T)`	Updates $S$ to include all elements of set $T$ , essentially $S \cup T$
`retainAll(T)`	Updates $S$ so that is only keeps elements that are also elements of set $t$ , Effectively replacing $S$ by $S \cap T$
`removeAll(T)`	Updates by removing any of its elements that also occur in set $T$ , essentially $S - T$

Intuition: Union on sorted lists

Generalised merge of two sorted lists A and B

Auxiliary methods
remove_first
Runs in $O(n_{A} + n_{B})$ time assuming the auxiliary methods run in $O(1)$ time
