Lecture 6

Hash Table

• we care about Search, inserting and deleting items

We want:

• $O(1)$ worst case insert, find and delete

We can have:

• efficient insertion and find operations
• do not require the items to be ordered
• do not require efficient removal of items
• Settle for $O(1)$ in the average case

Direct Access array

Consider a setting in which a map with n items uses keys that are known to be integers in a range from 0 to N − 1

• for some N ≥ n
• Very good if key space is small (constant time insert/delete/lookup) – data is at position k
  • But if $N >> n$ we will pay extreme space overhead
    • The array will be very sparse and wasteful
    • e.g. if we have three items, and one of the keys was '6221' means at least 6221 length array

More general types of keys

What should we do if our keys are not integers in the range from 0 to N – 1?

• Use a hash function to map general keys to corresponding indices in a table
• Hash function is a mapping:
  • I have some huge span of index and I'm going to map to some smaller domain
• If u >> N, no hash function is injective
  • That is, we must have collisions
  • $\exists \: \; a, b : h(a) = h(b)$
  • h('Barry') = h('John') could occur
  • use a hash function to map general keys to corresponding indices in a table
  • e.g. last four digits of a Tax File Number

• You can define a hash function on whatever kind of data you want

Hash functions and Hash Tables

• Hash function h maps keys of a given type to integers in a fixed interval [0, N - 1]

  • $h(x) = x \mod N$ – hash function for integer keys
  • Take the integer and modulo it by the hash table size. Is this a good idea?
  • Potential for lots of collisions

• Integer h(x) is called the hash value of key $x$

• Hash table for a given key type consists of

  • hash function $h$
  • bucket array (called table) of size $N$

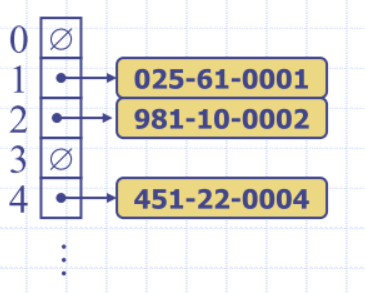

• Map implemented with a hash table

  • goal is to store item (k, o) at index $i = h(k)$

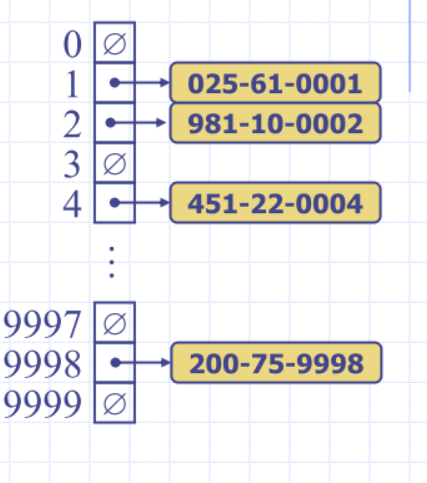

• Hash table for a map storing entries as (TFN, Name)

  • where TFN is a nine-digit positive integer

• Hash table uses an array of size N = 10,000 and the hash function

  • h(x) = last four digits of x

Hash functions

Usually specified as the composition of two functions

• Hash code
  • $h_{1}:$ keys $\rarr$ integers
• Compression function
  • $h_{2}:$ integers $\rarr \; \; [0, N-1]$
  • in compression function to keey array in check

Hash codes

Component Sum: Partition the bits of the key into components of fixed length

• e.g. 16 or 32 bits
• Sum the components Example:
• “the” = h = (int) t + (int) h + (int) e
  • Collisions may be common
  • the = teh = eht = het = eth

Polynomial Accumulation:

• Partition the bits of the key into a sequence of components of fixed length (e.g. 8, 16 or 32 bits)
  • $a_{0}, a_{1}, a_{2}, ..., a_{n-1}$
• Evaluate the polynomial at a fixed value $z$, ignoring overflows Empirically, $z = {33, 37, 39, 41}$ are reasonable.
• This is a type of “rolling” hash function – each step depends on the value of the previous step

What is the intuition?

• We are trying to spread out the influence of each “piece” of the key on the final hash code
• This means the hash code wont depend too much on any individual “piece”
• By increasing powers on each successive piece, we ensure significant bits are set/utilized
  • spread influence over the domain of bits Note: Here the “pieces” are those 8/16/32-bit quantities from the original key, $a_{0}, a_{1}, a_{2}, ..., a_{n-1}$

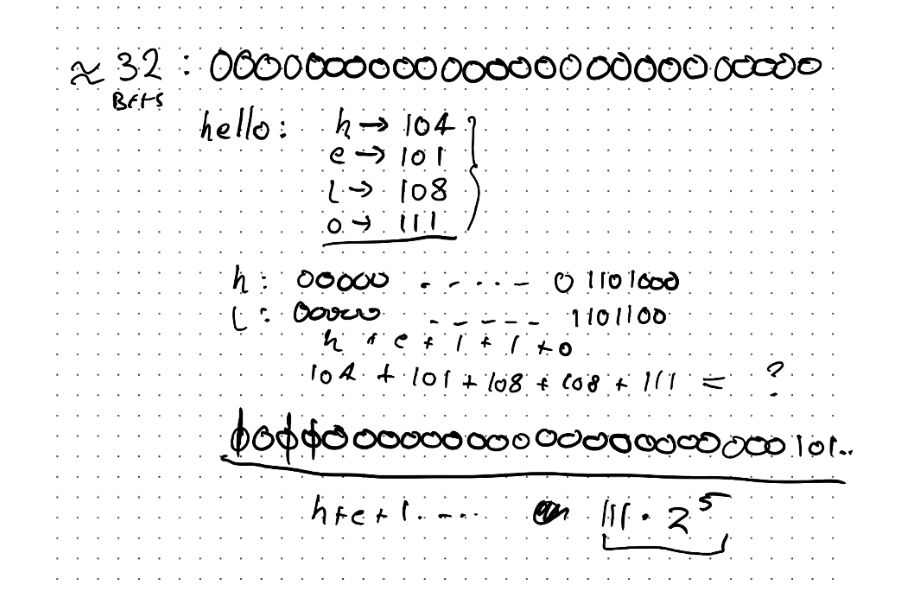

Intutition on paper

• the more randomness I can scatter throughout the bits, the better (I want to avoid collisions as best I can)

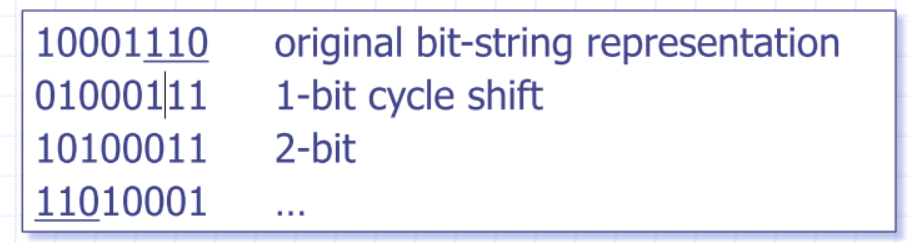

Cyclic Shift

• Variant of polynomial accumulation that replaces the multiplication with a bit shift
• Shift n bits from one side of bit pattern to the other side during the partial accumulation

def cyclic_hash(my_string):
    mask = (1 << 32) – 1  # Max 32-bit int
    h = 0                            # the running sum of the hash value
    for character in my_string:
        h = (h << 5 & mask) | (h >> 27) # 5 bit shift
        h += ord(character) # the integer representation of the char
    return h

• idea is that we are shifting bits across

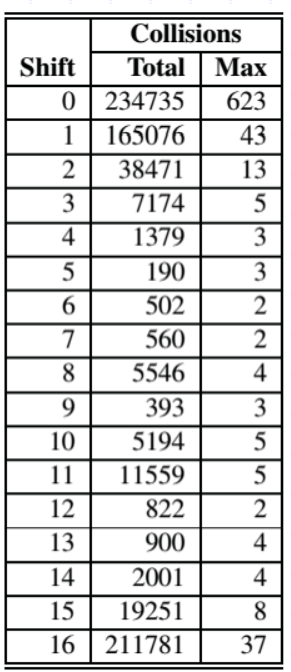

Shift collisions Example

• Each row shows the result of shifting a different number of bits
• Shows collisions for 230,000+ English words
• Total – total number of collisions
• Max – largest number of collisions that occurred for a hash code
• Which code is best?
  • (For this data) - 5?

Compression Functions

Division

• $h_{2}(y) = y \mod N$
• size N of the hash table should be prime
  • reason has to do with number theory and is beyond the scope of this course
  • Basic idea: Reduce the number of common factors between hash values and $N$
  • Results in more “spread” across available buckets

Multiply, Add and Divide (MAD)

• $h_{2}(y) = ((ay + b) \mod p) \mod N$
• $p$ is a prime number $> N$
• a and b are random integers in the range [0, p-1]

Recall that

• Hash table for a given key type consists of
  • hash function h that maps keys of a given type to integers in a fixed interval [0, N-1]
  • array (called table) of size N
• Goal is to store item (k, o) at index i = h(k)
  • might get collisions
• Collisions occur when different elements are mapped to the same cell

Collision Handling

• Collisions occur when different elements are mapped to the same cell

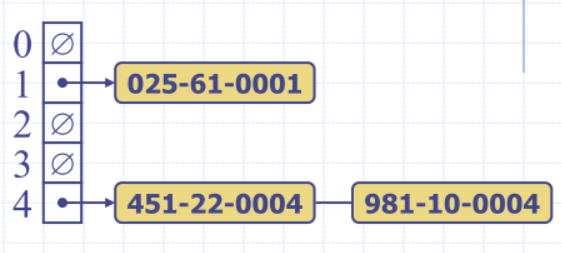

Separate Chaining

• each cell in the table points to a linked list of entries that map there - or extensible list, etc.
• simple, but requires additional memory outside the table

Map with Separate Chaining

• Delegate operations to a list-based map at each cell

Algorithm get(k): # get is find
    return A[h(k)].get(k)

Algorithm put(k, v): # put is insert
    t = A[h(k)].put(k, v)
    if  t = null  then {k is a new key}
        n = n + 1
    return t

Algorithm remove(k):
    t = A[h(k)].remove(k)
    if  t != null  then {k was found}
        n = n - 1
    return t

• Hashtable as pointer to other data structures storing stuff
• the get is a get implementation of a linkedlist
• use a hash table to find the 'bucket' of a key-value store
  • iterate through the linkedList at this index, find the element and return (key,value, or both, etc.)

Linear probing

• Open addressing: colliding item is placed in a different cell of the table
• Linear probing: handles collisions by placing the colliding item in the next (circularly) available table cell
• Each table cell inspected is referred to as a “probe”
• Colliding items lump together
  • causing future collisions to cause a longer sequence of probes

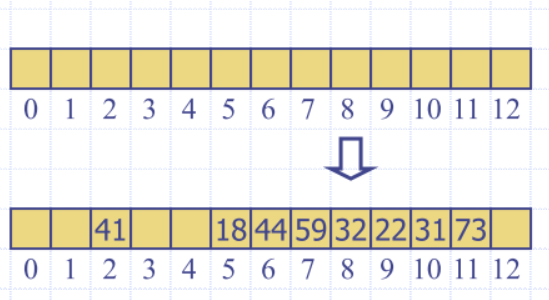

Insert keys 18, 41, 22, 44, 59, 32, 31, 73, in this order

• When you delete an item, cannot make it empty
  • empty implies there are hash is free, but elements could have been appending further on in the list
• append a placeholder value that will never show up in the list

put(k, o)

• throw an exception if the table is full
• start at cell h(k)
• probe consecutive cells until one of the following occurs
  • cell i is found that is either empty, or
  • N cells have been unsuccessfully probed
• store (k, o) in cell i

Quadratic Probing

• Probe index calculated by quadratic function
  • $(h(k)) + f(i))$ where $f(i)=i^{2}$ for $i= 0, 1, 2, …$
• Guaranteed to find an empty slot if
  • table size is prime
  • table is less than half full
  • This is because the quadratic probing sequence must visit at least half of the table indexes before repeating if the size of the table is prime
    • How densely filled is the table?

Double hashing

Secondary hash function $d(k)$ handles collisions by placing an item in the first available cell of the series $(h(k) + jd(k)) \mod N$ for $j = 0, 1, 2, … , N - 1$

Consider a hash table storing integer keys that handles collision with double hashing E.g.

• $N=13$
• $h(k) = k \mod 13$
• $d(k) = 7-k \mod 7$
• $(h(k) + j\cdot d(k)) \mod 13$

Hashing performance

• O(1) – expected running time of all Map operations
• O(n) – worst case for searches, insertions and removals
  • occurs when all keys inserted into the map collide

Load factor $a = n/N$ affects performance of a hash table

• Expected number of probes for an insertion with open addressing is
• $1 ÷ (1 - \alpha)$
• So what might be a reasonable load factor?

Load Factors

• Separate Chaining: $\alpha$ = 0.8 to 1.0 acceptable
  • If $\alpha$ = 1, one element per list
  • Low space overhead; a good hash function will give us on average $\alpha$ elements per linked list
  • Note that load can be arbitrarily large (chains approach infinite length as $\alpha$ approaches infinity)
• Linear Probing: Depends on the type, but typically $\alpha$ < 2/3 is desired
  • Python’s own open addressing uses 2/3
• State-of-art mechanisms can do well even with $\alpha$ > 0.9
• Can $\alpha$ > 1.0 ?

Fun with Hashing

• We can use hashing to implement structures other than maps
  • Bloom Filters – fast member testing
• Want collision free hashes?
  • Perfect hash functions
• Want less probing (and, worst-case constant time lookups)?
  • Cuckoo hashing

Bloom Filters

• Sometimes we might want to answer questions like “is the key k in my set S or not” (think duplication detection for example)

• Idea: We will build a structure that can efficiently answer this question with a caveat

  • If the answer is “no” then k is not in S
  • If the answer is “yes” then k might be in S
  • That is, false positives are possible, but false negatives are not

• Define an empty m element bitvector

  • Proportional to the number of keys to add, $n$

• Define z unique hash functions

  • z is usually a small constant

• To add a key, pass it to each of the z hash functions

  • Each switches on a bit

• To query a key, do the same as “add” and see if all bits are on

• w is a 'yes' as some of the bits are on

Perfect hashing

Idea: Given our set of keys S, we do some “offline work” to find a hash function that gives no collisions

• Then, we know that we can always get constant-time access to those entries!
• Example: h(k) = k mod 10 is perfect for $S = {10, 21, 32, 43, 54, 65, 76, 87, 98}$
• Knowing about keys ahead of time is very useful for many applications
  • What if they are integers from 0 to n?

Cuckoo Hashing

Idea: Store two hash tables with a unique hash function for each

• Put(k): Try the first table; if occupied, throw the entry with key k’ out and enter k here; Now try to put k’ into the second table… Continue repeatedly until a pre-set number of these repeats occur (or a cycle is found) – if so, rehash both tables with a new set of hash functions!!

• Get(k): It’s either at h1(k) or h2(k)…

  • Guaranteed constant-time access

• Insertions (even though you might end up with a big song and dance with rehashing keys) have been proven to be expected constant time

• So long as the load factor is below 50%

  • Finds/Deletes are constant time
