Lecture 6 continued

• Note: our key focus in COMP306 will be on Binary search tree, AVL trees and Splay trees

Search Tables

An ordered map implemented by means of a sorted list. Stores key-value pairs

• Sometimes still some sense of ordering
• store the items in an array-based sequence
  • sorted by key
• use an external comparator for the keys
• use binary search to lookup keys

Search tables performance:

• Searches take $O(\log n)$ time
  • using binary search
• Inserting a new item takes $O(n)$ time
• Removing an item takes $O(n)$ time

Binary search trees

• Binary tree storing keys (or key-value entries) at its internal nodes and satisfying the following property:

• Let u, v, and w be three nodes such that u is in the left subtree of v and w is in the right subtree of v.

  • $key(u) \le key(v) \le key(w)$
  • v is in the middle, u on left and w is on the right

• External nodes do not store items

• In-order traversal of a binary search tree visits the keys in increasing order

• Be careful: key can be tuples or pairs

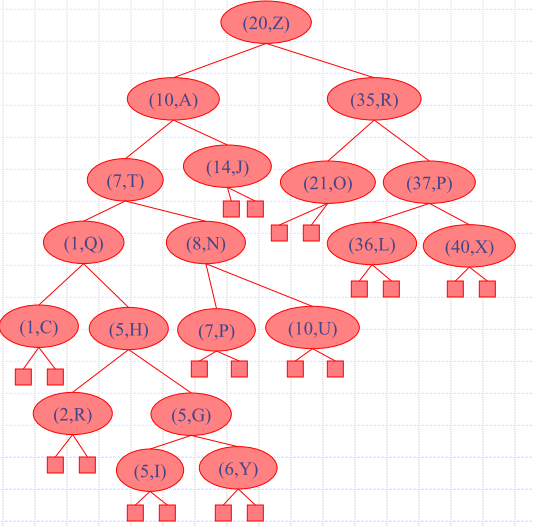

• For instance in the one below, compare number first, then letter

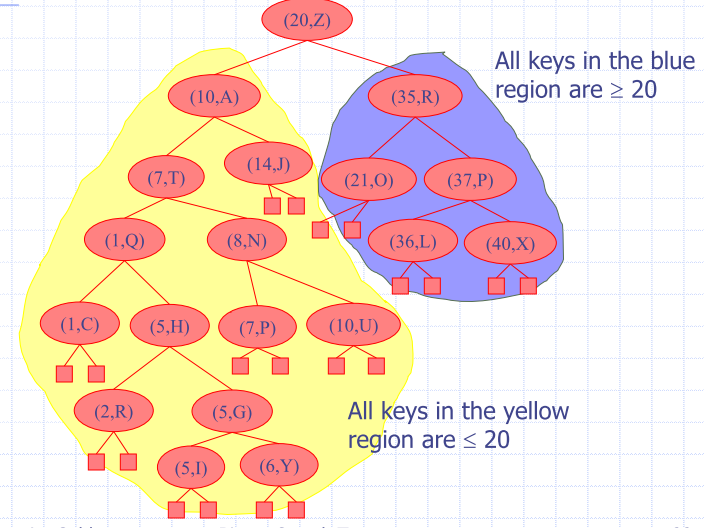

search tree image 1	search tree image 2

Search for key $k$

• Trace a downward path starting at the root

• Next node visited depends on the comparison of k with the key of the current node

  • if a leaf is reached, the key is not found Example: get(4)
  • call TreeSearch(4, root)

• Algorithms for nearest neighbour queries are similar

• Search proceeds down the tree to found item or an external node

• Example: Search for item with key 11

Intermediate step	result, no node

Insertion

• put(k, o)
• search for key k
  • using TreeSearch
• Assume k is not already in the tree
• w is the leaf reached by the search
• Insert k at node w and expand w into an internal node

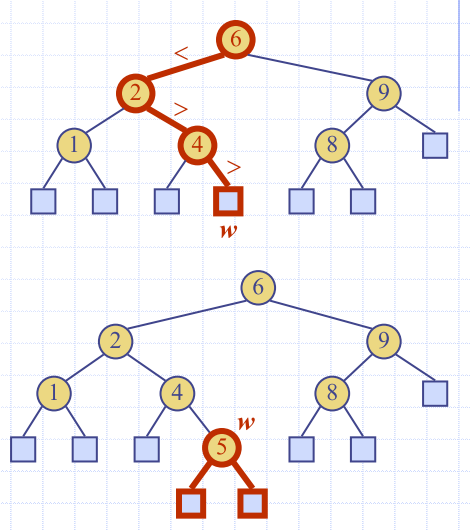

Example: insert 5

Deletion

remove(k)

• search for key k
• Assume key k is in the tree
• $v$ is the node storing $k$
  • If node $v$ has a leaf child $w$
    • remove $v$ and $w$ with removeExternal(w)
    • removes $w$ and its parent

Example: remove 4

• Consider the case where the key k to be removed is stored at a node v whose children are both internal
  • HAVE TO PERFORM IN-ORDER TRAVERSAL
  • find internal node w that follows v in an in-order traversal
  • 'I need to find the next key bigger than k'
  • copy key(w) into node v
  • remove node w and its left child z
• must be a leaf

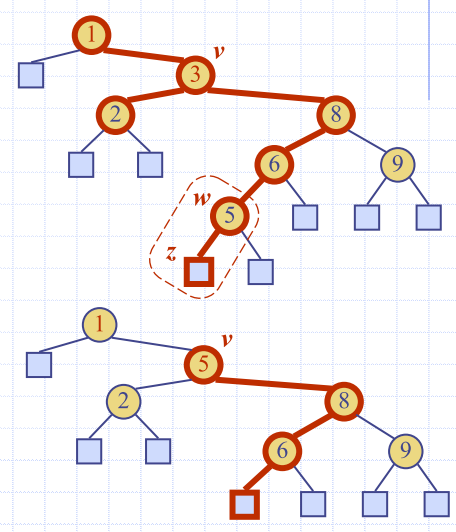

Example: remove 3

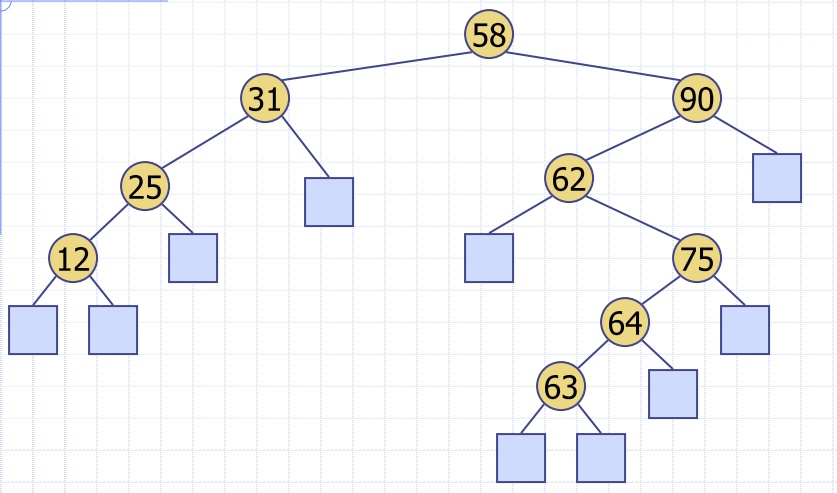

Example: What steps would be involved in deleting the node with key=58?

before	after

Performance

• Consider an ordered map with n items implemented by means of a binary search tree of height h
  • space used is O(n) (we have n things)
  • get, put and remove take $O(h)$ time ($h$ is the height of the tree)
    • when the tree is a stick, $h = n$
• Height h is
  • $O(n)$ in the worst case
  • $O(\log n)$ in the best case

What is I want to store duplicate keys?

• Create a multimap (lookup multimap ADT)
  • return the list, and return that for a given key
• One node with a key

BST vs Binary Search in Arrays

• searching the tree just simulates looking up an array (in certain circumstances)

AVL Trees

Balanced binary search tree

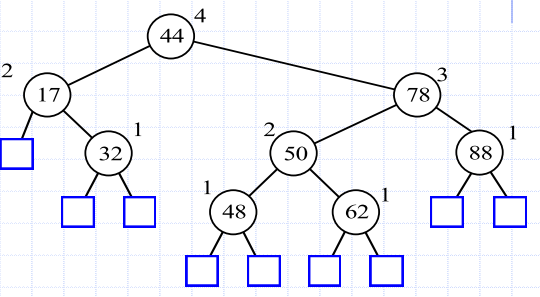

• For every internal node v, the heights of the children of v can differ by at most 1

Height-Balance property: for every internal node v, the heights of the children of v differ by at most 1

• Height of right subtree - height of left subtree OR count the level of each subtree

AVL tree search

• is $O(h)$
  • TreeSearch(48, root)
  • What is the maximum height of an AVL tree with $n$ nodes
• Height of an AVL tree storing $n$ keys in $O(\log n)$

Insertion (AVL)

• Insertion is as in a binary search tree
  • by expanding an external node
• Example

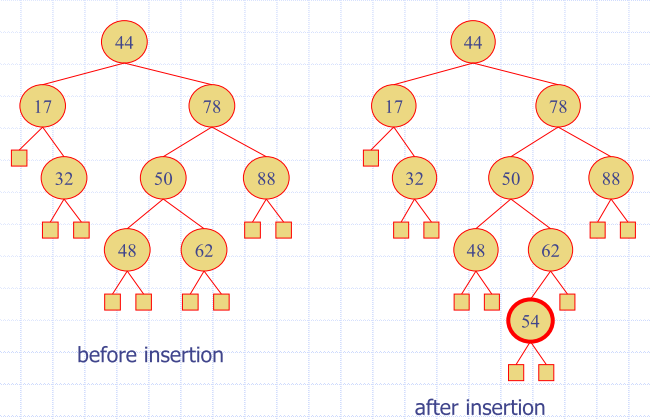

  • insert 54

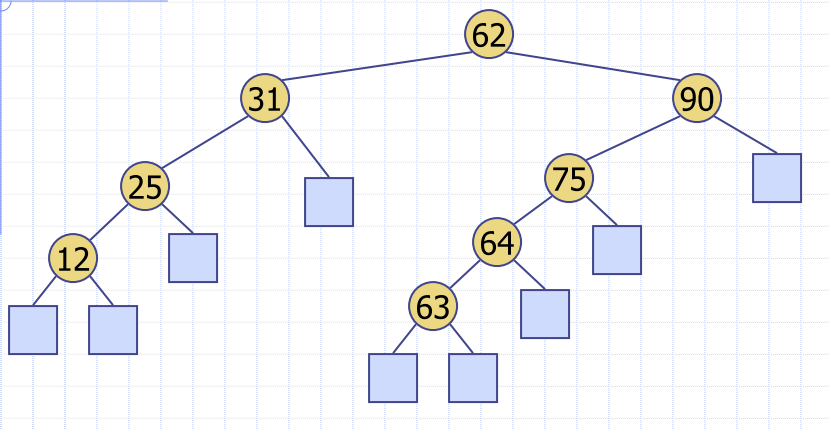

    • Is it still an AVL tree?

• At worst, one or more ancestors will change from

  • having children with height difference 1 to
  • having children with height difference 2

• Rebalancing the first unbalanced ancestor will rebalance the tree

• Need to preserve in-order relation

  • using tri-node restructuring

• Insertion is as in a binary search tree, plus rebalance

• $z$ is the first unbalanced node encountered while traveling up the tree from w

• $y$ is the child of $z$ with the larger height

• $x$ is the child of $y$ with the larger height

• restructure(x) to restore balance at $z$

Tri-node restructuring

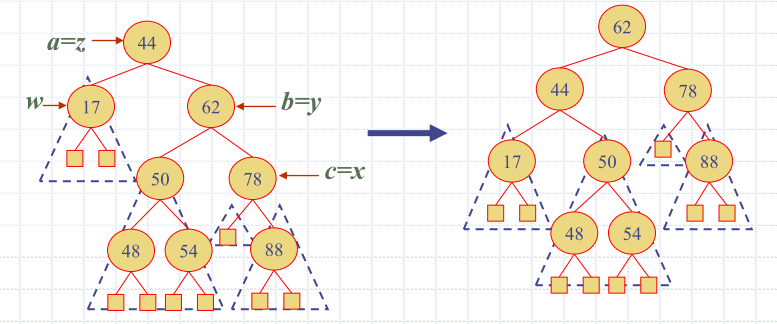

• Let (a,b,c) be the in-order listing of $x, y, z$
• Perform the rotations needed to make b the topmost node of the three
  • move $b$ up to make it the root node of $a$ and $c$
  • $c$ becomes the right subtree of $b$
  • $a$ becomes the left subtree of $b$

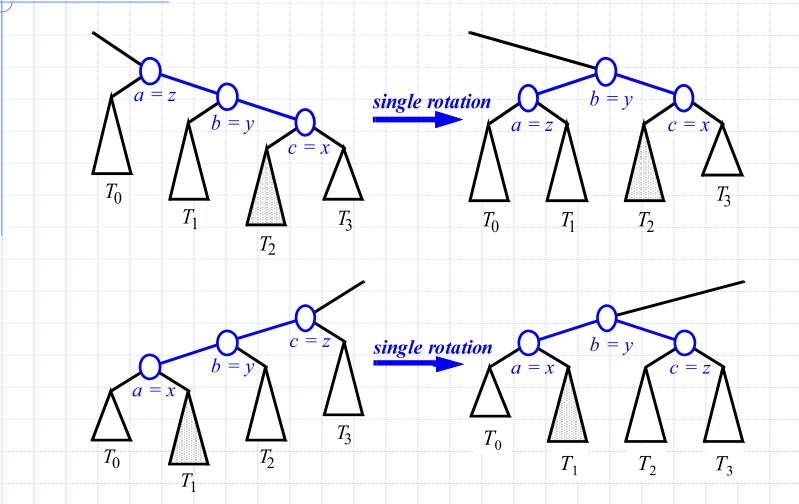

Before	after

Tri-node Restructuring (Case 2)

• Let (a,b,c) be the in-order listing of $x, y, z$
• Perform the rotations needed to make b the topmost node of the three

Step 1	Step 2	Step 3

There are all mirror symmetric cases:

Removal

• Begins as in a binary search tree
• Removed node will become an empty external node
  • its parent, w, may cause an imbalance

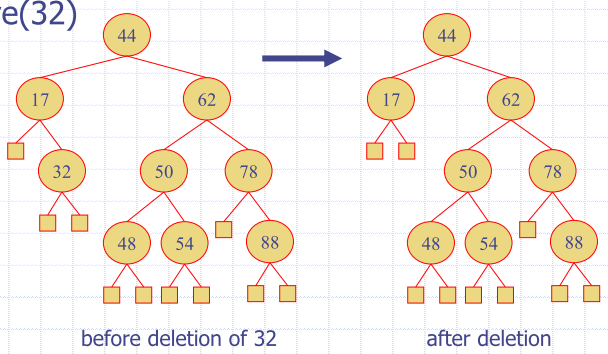

• Example: remove(32)

Balancing after a removal

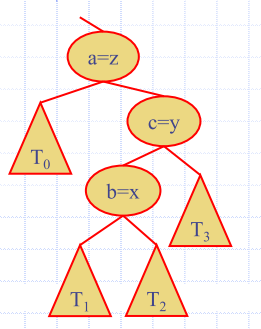

• z is the first unbalanced node encountered while travelling up the tree from w. Let y be the child of z with the larger height, and let x be the child of y with the larger height
• Perform tri-node restructuring to restore balance at z
• As this restructuring may upset the balance of another node higher in the tree, must continue checking for balance until the root of T is reached

tri-node restructuring

• Order preserving
  • changes preserve the in-order traversal of all nodes
• Local changes
  • changes are made locally when the grandparent is unbalanced
  • only a constant number of nodes are altered
  • single restructure restores the height-balance property globally

AVL Tree Performance

Splay Tree

• Splay tree is a binary search tree

  • nodes are splayed after being accessed
    • deepest internal node accessed

• Do not enforce a logarithmic upper bound on height of the tree

  • worst-case time complexity of search, delete and insert is $O(n)$

• Moves a node to the root using rotations

• Performed after all operations

  • searches
  • insertions
  • Removals

Rotations

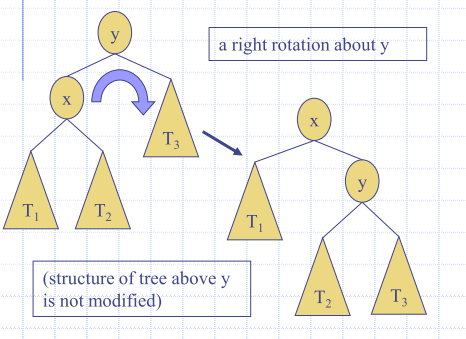

right rotation

• makes the left child x of a node y into y’s parent; y becomes the right child of x

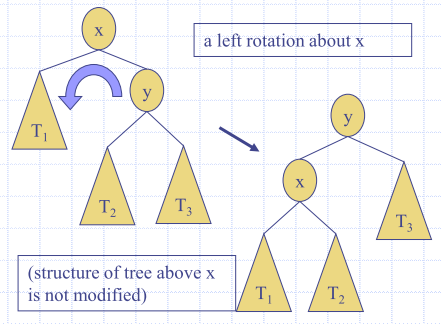

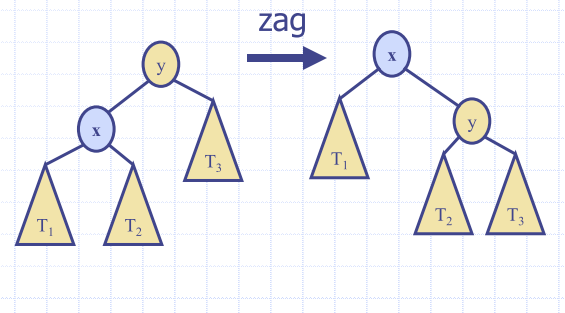

Right rotation	left rotation

Splaying

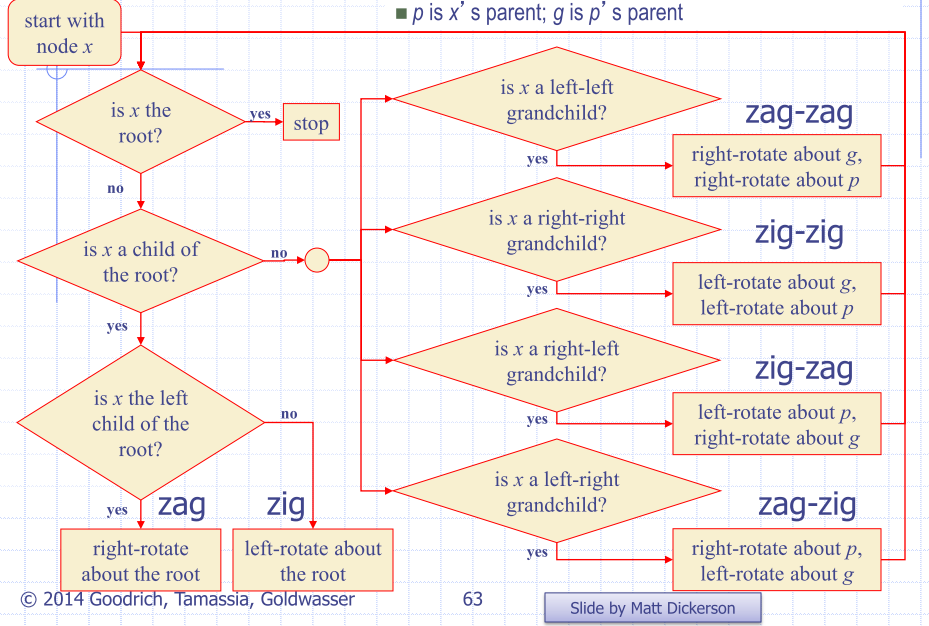

How do we splay?

• Is the node a child of the root?

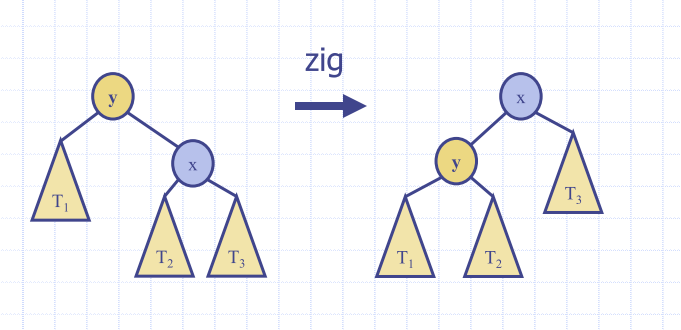

  • zig (left rotation)
  • zag (right rotation)

Example combinations

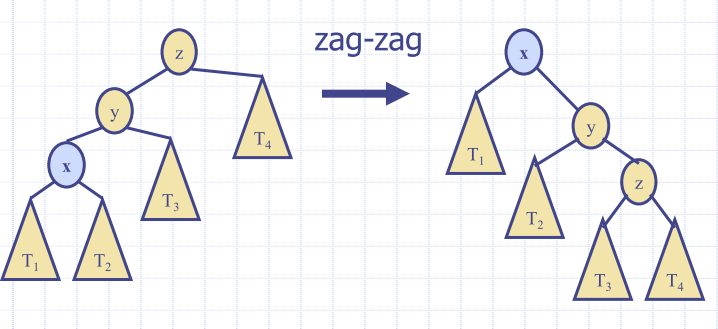

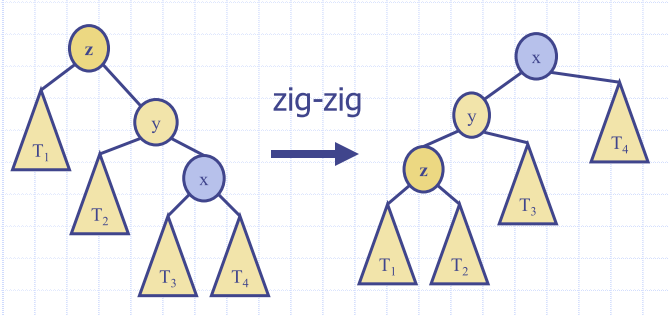

Zag	Zig	zig-zig	zag-zag	NOTE: Zig-zag

Ultimate table:

• Becuase splay operations are constantly occuring
• amortised running time is much better than linear
• Should have really good expected behaviour

Insertions with Splaying

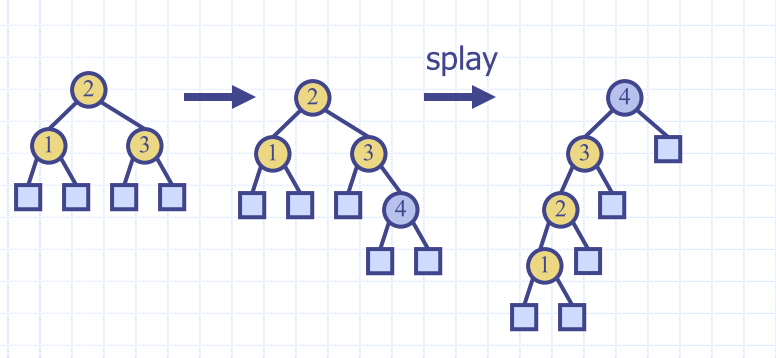

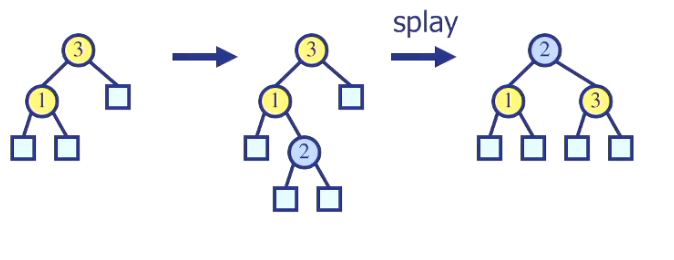

Insert 2:

Insert 4:

Splaying costs

• Splaying costs $O(h)$

  • where h is height of the tree
    • O(n) worst-case

• O(h) rotations, each of which is O(1)

• Amortised cost of splaying any node is O(log n)

  • amortised cost of a splay operation is the time T(n) needed to perform a series of n splay operations, divided by n
    • i.e. 𝑇(𝑛) ÷ 𝑛

• Splay trees can adapt to perform searches on frequently-requested items much faster than O(log n) in some cases

Key Ideas

• probably ~10-20 balanced tree types in the literature
  • most commonly seen: AVL, Splay, Red-black, B+ trees

Red-Black Trees

• A very specific type of balanced tree
  • A specialisation of (2, 4)-trees
• Very similar in spirit to the AVL tree, but less stringent balance requirements
  • Implication: Faster inserts and deletions, but slower finds.

B-Trees (B+ and other variants)

• Typically used in database applications
• Very high number of children
  • Allows for shallow trees
  • In databases, this means fewer disk seeks
