Lecture 8 - Graphs

1. Graph fundamentals
2. Graph implementation
3. Depth-first search
4. Breadth-first search
5. Directed graphs

Graphs

• A graph is a pair (V, E), where
  • V is a set of nodes, called vertices
  • E is a collection of pairs of vertices, called edges
  • Both vertices and edges can be thought of as positions and may store elements
    • Similar to a binary tree, is an object that might have pointers to other objects
    • might have an identifier 'g' for example, with other data underneath etc

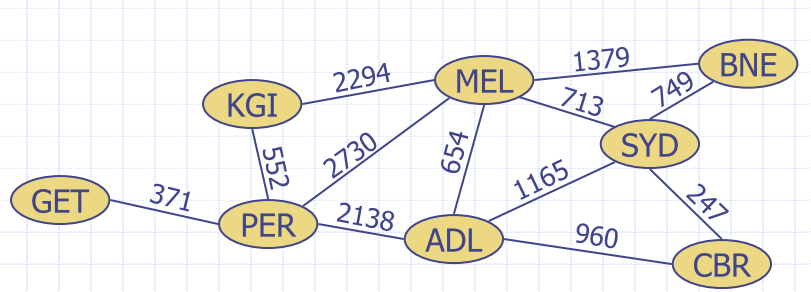

Example

• Vertex represents an airport and stores the airport code
• Edge represents a flight route between two airports and stores distance of the route

Edge types

• Undirected edge
  • unordered pair of vertices (u,v)
  • e.g. a flight route
• Undirected graph
  • all the edges are undirected
  • e.g. flight route network
• Directed edge
  • ordered pair of vertices (u,v)
  • first vertex u is the origin
  • second vertex v is the destination
  • e.g. a flight
• Directed graph
  • all the edges are directed
  • e.g. flight network

Might want to have a directed edge (can go in one direction, but can't go back)

• sometime edges have direction
• If it consists entirely with no directions, then undirected graph

Terminology

• End vertices (or endpoints) of an edge

  • U and V are endpoints of a

• Edges incident on a vertex

  • a, d, and b are incident on V

• Adjacent vertices

  • U and V are adjacent
    • connected by a vertix

• Degree of a vertex

  • X has degree 5 (number of edges connected to a vertex)
  • Could have indegree and outdegree if directed
  • indegree, how many edges are coming into the node
  • outdegree, how many edges outbound from the node

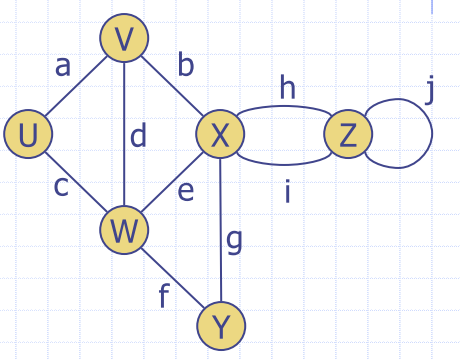

• Parallel edges

  • h and i are parallel edges

• Self-loop

  • j is a self-loop

More terminology

• Path
  • sequence of alternating vertices and edges
  • begins with a vertex
  • ends with a vertex
  • each edge is preceded and followed by its endpoints
• Simple path
  • all vertices and edges are distinct

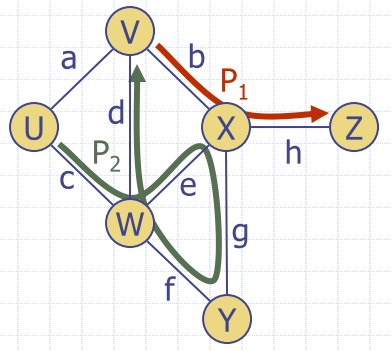

• Examples
  • $P_{1} =(V,b,X,h,Z)$ is a simple path
  • $P_{2} =(U,c,W,e,X,g,Y,f,W,d,V)$ is not a simple path

More terminology

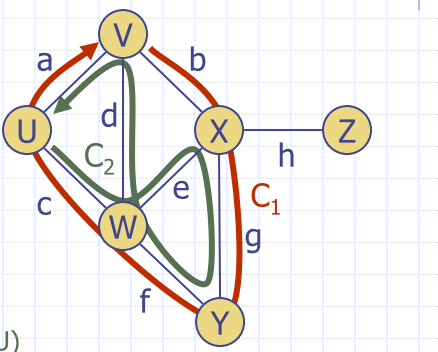

• Cycle
  • path that starts and ends on the same vertex
• Simple cycle
  • all vertices are distinct, except the first and last
  • all edges are distinct
• Examples
  • $C_{1} =(V,b,X,g,Y,f,W,c,U,a,V)$
    • a simple cycle
  • $C_{2} =(U,c,W,e,X,g,Y,f,W,d,V,a,U)$
    • not a simple cycle

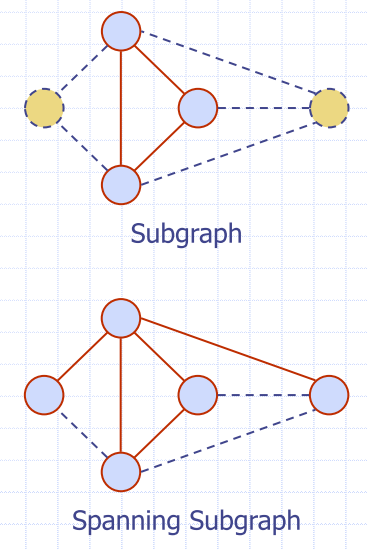

Subgraphs

• Subgraph S of a graph G is a graph such that
  • vertices of S are a subset of the vertices of G
  • edges of S are a subset of the edges of G
• Spanning subgraph of G is a subgraph that contains all the vertices of G

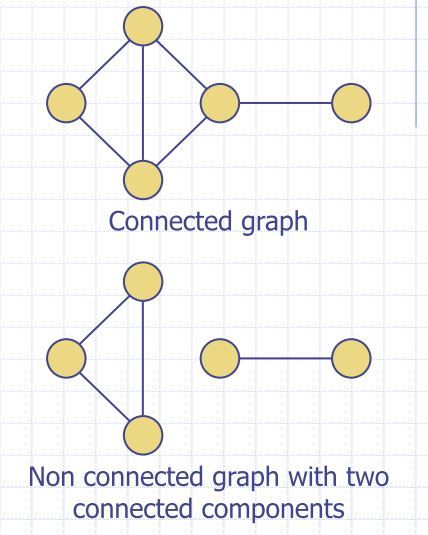

Connectivity

• Graph is connected if there is a simple path between every pair of vertices
• Connected component of a graph G is a connected subgraph of G

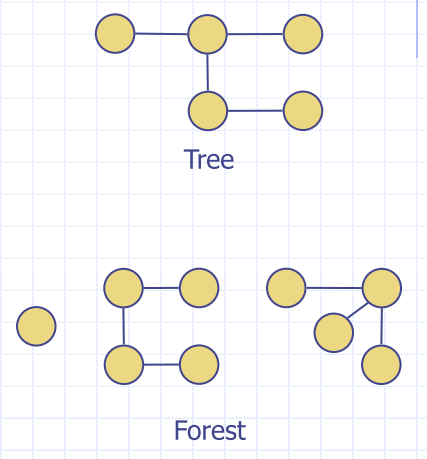

Trees and Forests

• Undirected graph T is an unrooted tree if
  • T is connected
  • T has no simple cycles
• An undirected graph is a forest if it contains no simple cycles
• If you have graphs are disconnected and you want to check a component, you need to check every disconnected graph you haven't checked

Spanning Trees and Forests

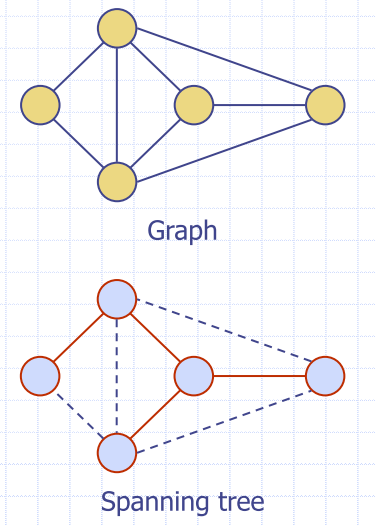

• Spanning tree of a connected graph is a spanning subgraph that is a tree
• Spanning forest of a graph is a spanning subgraph that is a forest
  • dropped edges, no longer have cycles anymore

Notation

• in an undirected graph with no self-loops and no multiple edges

  $$m \le n(n-1) / 2$$

• $n = |v|$ number of vertices
• $m = |e|$ number of edges
• deg($v$) degree of vertex $v$
• We count each edge twice, i.e.

$$\sum_{v} deg(v) = 2m$$

Graph Density

• Undirected simple graph

$$𝐷 = \dfrac{2𝑚}{𝑛(𝑛−1)}$$

• Directed simple graph

$$𝐷 = \dfrac{m}{𝑛(𝑛−1)}$$

• Maximum density is 1
• Minimum density is 0
• Sparse
  • $m ≅ O(n)$
• Dense
  • $m ≅ O(n^{2})$

Graph implementation - vertex and edge ADTs

• Graph is a collection of vertices and edges
• Model the abstraction as a combination of three data types: Vertex, Edge and Graph
• Vertex is a lightweight object that stores an arbitrary element provided by the user (e.g. an airport code)
  • element() method retrieves stored element
• Edge stores an associated object (e.g. a flight number, travel distance, cost)
  • retrieved with element()

Graph ADT

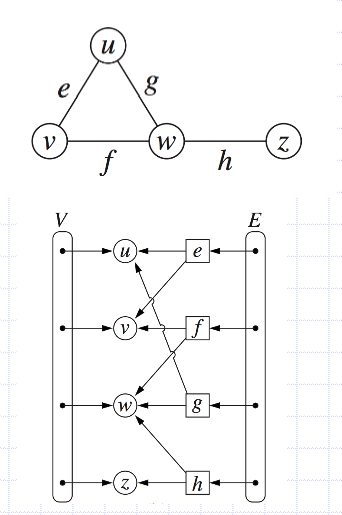

Edge list

• Sequence of edges
  • represented by vertex pairs Edge List (image below) (1,2) (1,3) (3,0) (0,2)

Edge list Structure

• Vertex object
  • element
  • reference to position in vertex sequence
    • have to add this into a map, etc.
• Edge object
  • element
  • origin vertex object
  • destination vertex object
  • reference to position in edge sequence
    • Going to store weight in object
    • going to hold pointers to the vertices it is referring to
• Vertex sequence
  • sequence of vertex objects
• Edge sequence
  • sequence of edge objects

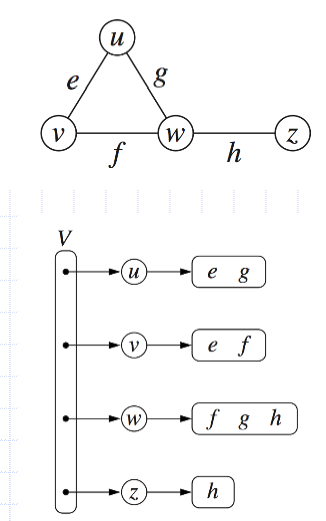

Adjacency List Structure

• Extends edge list
• Incidence sequence for each vertex
  • sequence of references to edge objects of incident edges
• Augmented edge objects
  • references to associated positions in incidence sequences of end vertices

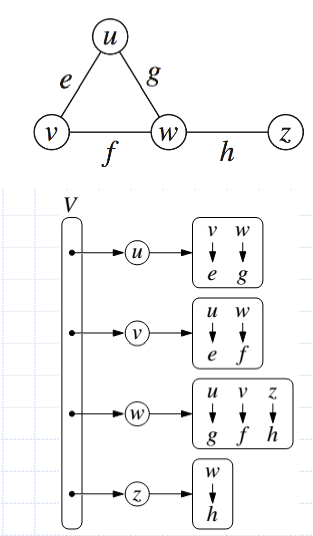

Adjacency Map Structure

• Adapts adjacency list
• Incidence list becomes a map

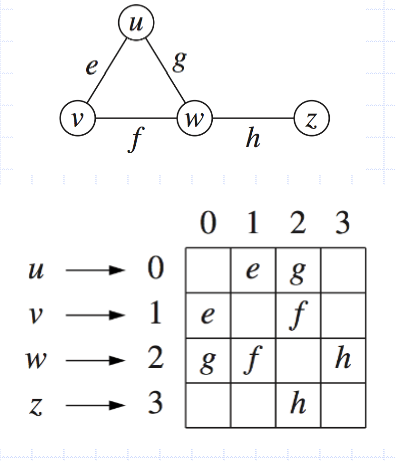

Adjacency Matrix structure

• Edge list structure
• Augmented vertex objects
  • integer key (index) associated with vertex
• 2D-array adjacency matrix
  • reference to edge object for adjacent vertices
  • null for nonadjacent vertices
• “Old fashioned” version
  • 0 for no edge
  • 1 for edge

Performance table

• $n = |v|$ number of vertices
• $m = |e|$ number of edges

Graph traversal

• Systematic process for exploring a graph
  • visit all vertices and edges
• Efficient if done in linear time
• Allows determination of reachability
  • how to travel from one vertex to another

Depth-First Seach (DFS)

• General technique for traversing a graph
• DFS traversal of a graph G : $O(n + m)$
  • visits all the vertices and edges of G
  • determines whether G is connected
  • computes the connected components of G
  • computes a spanning forest of G

Algorithm DFS(G, v):
    Input Graph G and a vertex v of G
    Output Collection of vertices reachable from v and their discovery edges and back edges

    Mark vertex v as visited
    for all e in G.outgoingEdges(v) do
        if e is not explored then
            w <- G.opposite(v, e)
            if w has not been visited then
                Record edge e as a discovery edge for vertex w
                DFS(G, w)
            else
                Mark e as a back edge for vertex w

• dont want to go back to the original node, but I want to mark that I have visited and discovered this edge

properties of DFS

• Property 1
  • DFS(G, v) visits all the vertices and edges in the connected component of v
• Property 2
  • Discovery edges labelled by DFS(G, v) form a spanning tree of the connected component of v

Analysis of DFS

• Setting/getting a vertex/edge label takes O(1) time
• Each vertex is labelled twice
  • once as UNEXPLORED
  • once as VISITED
• Each edge is labelled twice
  • once as UNEXPLORED
  • once as DISCOVERY or BACK
• Method outgoingEdges is called once for each vertex
• DFS runs in O(n + m) time
  • provided graph is implemented as an adjacency list
    • recall that $\sum_{v} deg(v) = 2m$

Path Finding And Cycle Finding

• DFS can be modified to identify a path from one vertex to another
• can be used to identify cycles through backedges

DFS for entire graph

• Have to run DFS for all nodes on each subsequent run

Algorithm DFS(G):
    Input Graph G
    Output Labelling of edges of G as discovery and back edges

    for all u is an element of G.vertices() do
        Set u to be unvisited
    for all e is an element of G.edges() do
        Set e to be unexplored
    for all v is an element of G.vertices() do
        if v has not been visited then
            DFS(G, v)

BFS Algorithm from a vertex

Algorithm BFS(G, u)
    Input Graph G and a vertex u of G
    Output Collection of vertices reachable from u and their discovery and cross edges

    Q = new empty queue
    Q.enqueue(u)
    Mark vertex u as visited
    while Q.isEmpty() do
        v = Q.dequeue()
        for all e in G.incidentEdges(v) do
            if e is not explored then
                w <- G.opposite(v, e)
                if w has not been visited then
                    Record edge e as a discovery edge for vertex w
                    Q.enqueue(w)
                    Mark vertex w as visited
                else
                    Mark e as a cross edge

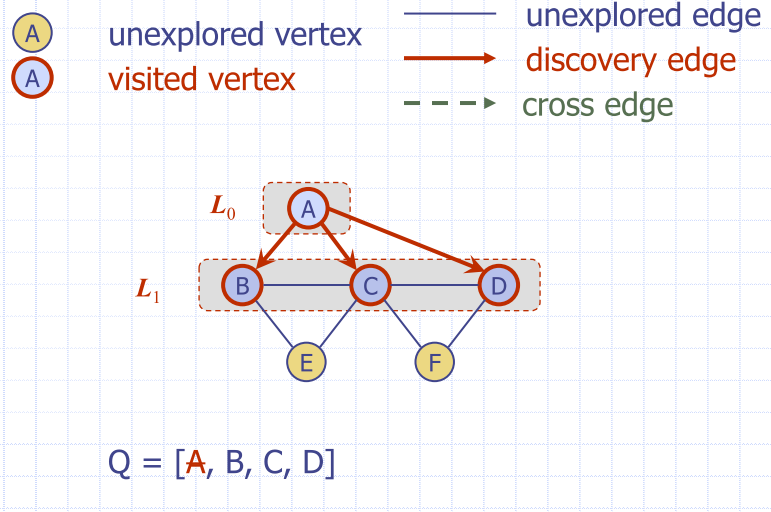

Example

DFS vs. BFS

Back edge (v, w)

• w is an ancestor of v in the tree of discovery edges Cross edge (v, w)
• w is in the same level as v, or in the next level

BSF Properties

• Notation
  • $G_{s}$ connected component of s
• Property 1
  • $BFS(G, s)$ visits all the vertices and edges of $G_{s}$
    • WILL ONLY VISIT ONE CONNECTED COMPONENT
• Property 2
  • Discovery edges labeled by $BFS(G, s)$ form a spanning tree $T_{s}$ of $G_{s}$
• Property 3
  • For each vertex v in $L_{i}$
    • path of $T_{s}$ from s to v has i edges
    • every path from s to v in $G_{s}$ has at least i edges

Analysis of BFS

• Setting/getting a vertex/edge label takes O(1) time
• Each vertex is labelled twice
  • once as UNEXPLORED
  • once as VISITED
• Each edge is labelled twice
  • once as UNEXPLORED
  • once as DISCOVERY or CROSS
• Each vertex is inserted once into a sequence $L_{i}$
• Method outgoingEdges is called once for each vertex
• BFS runs in O(n + m) time
  • provided graph is implemented as an adjacency list
    • recall that $\sum_{v} deg(v) = 2m$

Directed Graphs

• Graph whose edges are all directed
  • “directed graph”
• Applications
  • one-way streets
  • flights
  • task scheduling

• Graph whose edges are all directed
• “directed graph”
  • Applications
• one-way streets
• flights
• task scheduling

Digraph Properties

• Graph G=(V,E) such that
  • each edge goes in one direction
  • edge (a,b) goes from a to b, but not b to a
• If G is simple
  • $m < n\cdot (n - 1)$
• If in-edges and out-edges are kept in separate adjacency lists
• can perform listing of incoming edges and outgoing edges in time proportional to their size

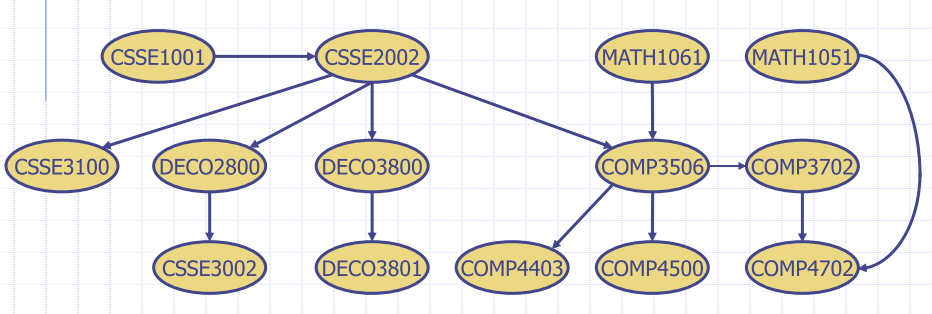

Digraph Application

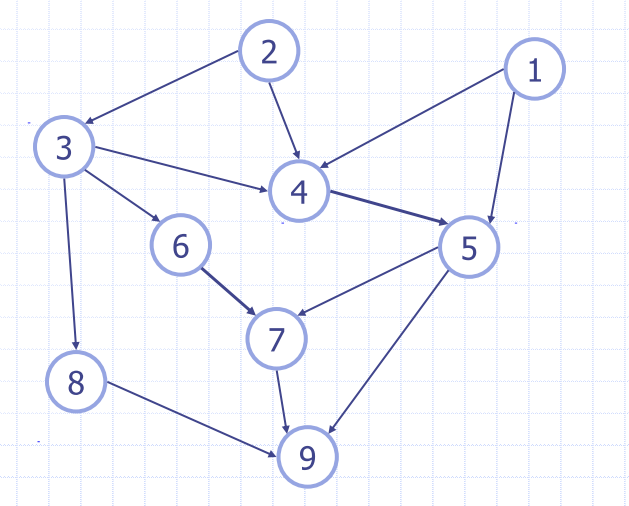

Scheduling: edge (a,b) means task a must be completed before b can be started

Directed Graph Traversal

• Specialise (DFS & BFS) traversal algorithms for digraphs by traversing edges only along their direction
• Directed DFS algorithm has four types of edges
  • discovery edges
  • back edges
  • forward edges
  • cross edges
• Directed DFS starting at vertex s determines the vertices reachable from s

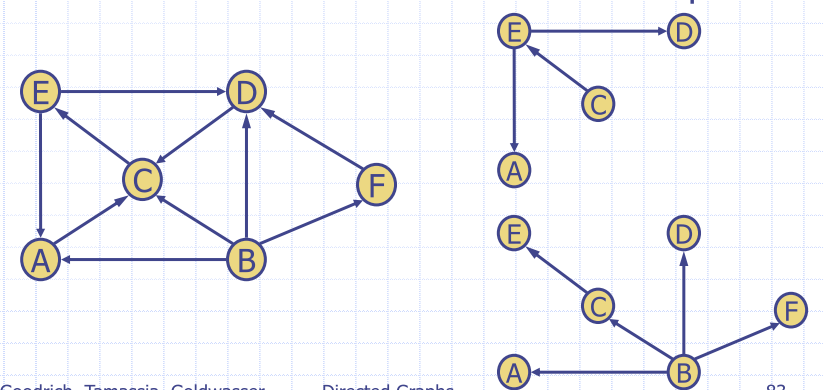

Reachability

DFS tree rooted at vertex v

• vertices reachable from v via directed paths
  • e.g. if we take c, we can only go to e, to d, to a, to c as well
  • given some vertex, which other ones can we get to?

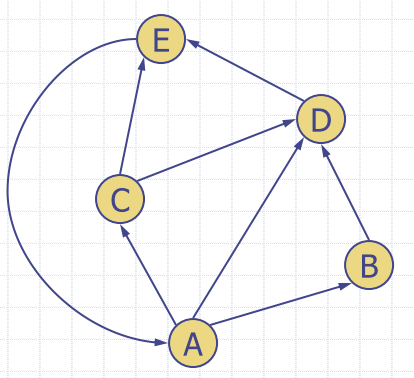

Strong connectivity

• Reach a vertex from any given vertex
• If we can run of every node and we can get to every other node, then we are done

Strong Connectivity Algorithm

• Pick a vertex v in G
• Perform a DFS from v in G
  • if there’s a w not visited, false
• Let G’ be G with edges reversed
• Perform a DFS from v in G’
  • if there’s a w not visited, false
  • else, true
• Running time: $O(n+m)$

DAGs and Topological Ordering

• Directed acyclic graph (DAG)
  • digraph with no directed cycles

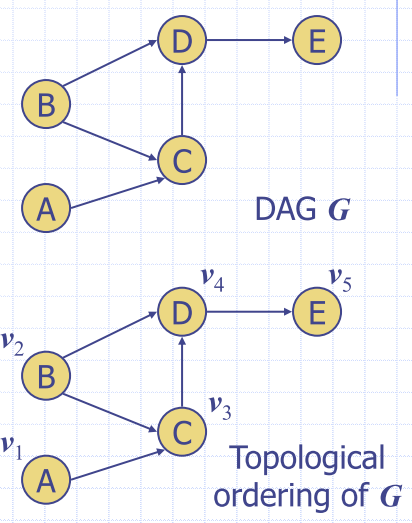

• Topological ordering of a digraph is a numbering $v_{1}, ..., v_{n}$ of the vertices such that for every edge $(v_{i}, v_{j})$, we have $i < j$
• Example: in a task scheduling digraph, a topological ordering of a task sequence that satisfies the precedence constraints
• Not one topological ordering for a graph

Theorem

A digraph has a topological ordering if and only if it is a DAG

Algorithim for Topological sorting

• Essentially, find the vertex with no outgoing edges, and label it the highest number. remove it from the graph and edges associated with it

Algorithm TopologicalSort(G):
  H <- G // Temporary copy of G
  n <- G.numVertices()
  while H is not empty do
    Let v be a vertex with no outgoing edges
    Label v <- n
    n <- n - 1
    Remove v from H

Topological sorting with DFS

Algorithm topologicalDFS(G)
  Input dag G
  Output topological ordering of G

  n <- G.numVertices()
  for all  u in G.vertices() do
    Set u to be unvisited
  for all  v in G.vertices() do
    if v has not been visited then
      topologicalDFS(G, v)

Algorithm topologicalDFS(G, v)
  Input graph G and a start vertex v of G
  Output labeling of the vertices of G in the connected component of v

  #Mark vertex v as visited
  for all  e in G.outgoingEdges(v) do
    w <- G.opposite(v, e)
      if w has not been visited then
        { e is a discovery edge }
        topologicalDFS(G, w)
      else
        { e is a forward or cross edge }
  #Label v with topological number n
  n <- n - 1
