Chapter 6.1 - Stacks

A stack is a collection of objects that are inserted and removed according to the last-in, ﬁrst-out (LIFO) principle.

May only access or remove the most recently inseted object that remains (at the so-called 'top' of the stack)

Stack Data Type

Formally, a stack is an abstract data type (ADT) such that an instance S supports the following two methods:

S.push(e) Add an element e to the top of stack $s$
S.pop(): Remove and return the top element from the stack S; an error occurs if the stack is empty

Accessor methods for convenience:

S.top(): Return a reference to the top element of stack S, without removing it; an error occurs if the stack is empty.
S.is_empty(): Return True if stack S does not contain any elements.
len(S): Return the number of elements in stack S; in Python, we implement this with the special method __len__.

Simple Array-based Stack implementation

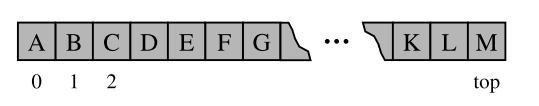

Implement a stack quite easily, aligning the top of the stack at the end of the list.

ALT

Adapter Pattern

The Adapter design pattern applied tto any context where we effectively want to modify an existing class so that its methods match those of a related, but different, class or interface.

Apply an adapter pattern by defining a class in such a way that it contains an instance of the existing class as a hidden field, and iimplement each method of the new class using methods of this hidden instance variable

Stack Method	Realisation with Python list
`S.push(e)`	`L.append(e)`
`S.pop()`	`L.pop()`
`S.top()`	`L[-1]`
`S.is_empty()`	`len(L)==0`
`len(S)`	`len(L)`

We use the adapter desing pattern to define an ArrayStack that uses an underlying Python list for storage

Use word ArrayStack to emphasize that the underlying storage is inherently Array based
when pop is called on an empty Python list, it formally raises and Indexerror, but this does not seem appropriate for a stack - define a new exception class that is more appropriate

Usage example

S = ArrayStack( )       # contents: [ ]
S.push(5)               # contents: [5]
S.push(3)               # contents: [5, 3]
print(len(S))           # contents: [5, 3]; outputs 2
print(S.pop())          # contents: [5]; outputs 3
print(S.is empty())     # contents: [5]; outputs False
print(S.pop())          # contents: [ ]; outputs 5
print(S.is empty())     # contents: [ ]; outputs True
S.push(7)               # contents: [7]
S.push(9)               # contents: [7, 9]
print(S.top())          # contents: [7, 9]; outputs 9
S.push(4)               # contents: [7, 9, 4]
print(len(S))           # contents: [7, 9, 4]; outputs 3
print(S.pop())          # contents: [7, 9]; outputs 4
S.push(6)               # contents: [7, 9, 6]

Class implementation


class ArrayStack:
    """LIFO Stack implementation using a Python list as underlying storage."""

    def init (self):
    """Create an empty stack."""
        self. data = [ ] # nonpublic list instance

    def len (self):
    """Return the number of elements in the stack."""
        return len(self. data)

    def is empty(self):
    """Return True if the stack is empty."""
        return len(self. data) == 0

    def push(self, e):
    """Add element e to the top of the stack."""
        self. data.append(e) # new item stored at end of list

    def top(self):
    """Return (but do not remove) the element at the top of the stack.

    Raise Empty exception if the stack is empty.
    """
        if self.is empty():
           raise Empty( Stack is empty )
        return self. data[−1] # the last item in the list

    def pop(self):
    """Remove and return the element from the top of the stack (i.e., LIFO).

    Raise Empty exception if the stack is empty.
    """
        if self.is empty():
            raise Empty( Stack is empty )

        return self. data.pop( ) # remove last item from list

Efficiency for stack-based implementation

Operation	Running Time
`S.push(e)`	$O(1)^{*}$
`S.pop()`	$O(1)^{*}$
`S.top()`	$O(1)$
`S.is_empty()`	$O(1)$
`len(S)`	$O(1)$

Reversing data using a stack

As a consequence of the LIFO protocol, a stack can be used as a general tool to reverse a data sequence.

Example, print lines in reverse order
- Read each line and push it onto the stack, and then writing the lines in the order they are popped.

def reverse ﬁle(ﬁlename):
    '''Overwrite given ﬁle with its contents line-by-line reversed.'''
    S = ArrayStack()
    original = open(ﬁlename)
    for line in original:
        S.push(line.rstrip( '\n' )) # we will re-insert newlines when writing
    original.close()

    # now we overwrite with contents in LIFO order
    output = open(ﬁlename, w ) # reopening ﬁle overwrites original

    while not S.is empty():
        output.write(S.pop( ) + '\n' ) # re-insert newline characters
    output.close()

We intentionally strip trailing newlines from lines as they are read, and then re-insert newlines after each line when writing the resulting ﬁle.

Example: Algorithm for matching delimiters

Take arithemtic expressions and their delimeters, i.e. '([{' and '}])' respectively.
- Example: ()(()){([()])} correct implementation
- Example: )(()){([()])} incorrect implementation
The following python implementation can determin whether all delimiters properly match

def is matched(expr):
"""Return True if all delimiters are properly match; False otherwise.  """
    lefty = '({[' # opening delimiters
    righty = ')}]' # respective closing delims
    S = ArrayStack()
    for c in expr:
        if c in lefty:
            S.push(c) # push left delimiter on stack
        elif c in righty:
            if S.is empty():
                return False # nothing to match with
            if righty.index(c) != lefty.index(S.pop()):
                return False # mismatched
    return S.is empty( ) # were all symbols matched?

Queues

Similar to a stack, but follows a FIFO principle
- Elements can be inserted in at any time, but only the element that has been in the queue the longest can be next removed.
A metaphor for this is people waiting in line to get on an amusement ride
