Tutorial 1 - Slides

Arrays

Data structure storing a group of elements of the same type
contiguous area of memory

Action	Time
Access Element	Constant
Increase array size	Linear (need to allocate new memory + copy over elements)
Insert into middle of aray	Linear (usually new to allocate new memory, shift elements into insertion point)

Algorithms

Finite sequence of well-defined, computer implementable instructions
Always unambiguous
The user doesn't like to wait - we choose the fastest algorithms to solve our problems

Measure algorithms experimentally:

One way to study the efficiency is to implement it and expierment with various inputs and record the time spent
Plot results and complete statistical analysis

Issues with experimental analysis

Difficult to compare unless tested on identical software and hardware
May leave out certain inputs, which may be important and have different running times

Beyond experimental analysis

Develop an approach to analysing algorithm efficiency

Allow us to evaluate relative efficiency of two algorithms

Important details to measure

Runtime and memory
Focussed on worst-case scenarios
- Can also analyse best case and average case scenarios, those these are typically harder to do

Theoretical Algorithm Analysis

Describe using pseudocode
Count primitive operations
Describe the function of f(n)
- Number of inputs (n)
- Maximum/worst case number of primitive operations
Perform asymptotic analysis

Asymptotic Analysis

Determine Big O, $\Omega$ , $\Theta$ bounds on runtime

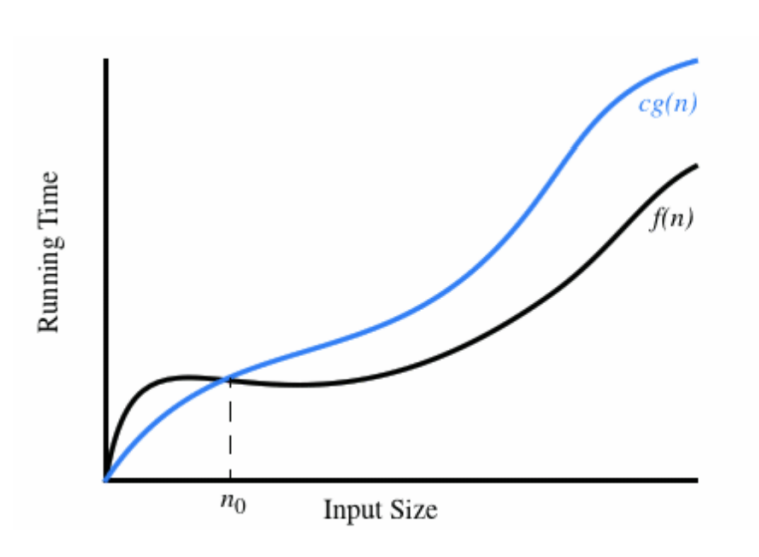

Big O notation describes the upper bound on the function
Given functions $f(n)$ and $g(n)$ which map positive integers to positive real numbers, we say that:

f(n) \; is \; O(g(n))

If there exists constants $c$ and $n_{0}$ such that

f(n) \le c\cdot g(n) \; for \;all \; n > n_{0}

Alt text

Function $f(n)$ grows asymptotically no faster than $g(n)$

$O(g(n))$ defines an infinite set of functions
They have to be asymptotically equal

Big O

When we usually talk about asyptotic analysis, we use the following rules:

Drop lower order terms and constants
Make your bounds as tight as possible
Simplify as much as possible

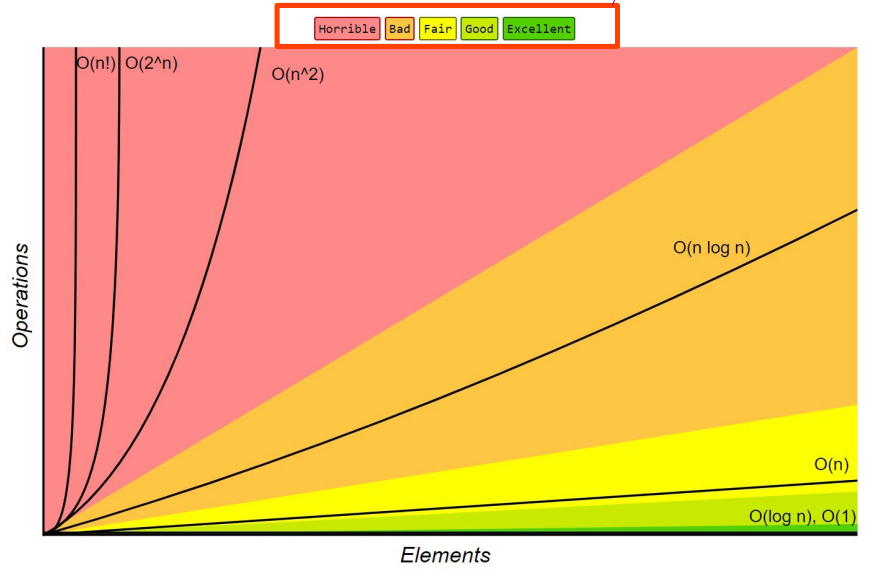

Important growth rates you need to know:

Name	Notation
Constant	$1$
Logarithmic	$\log n$
Linear	$n$
Log-linear	$n \log n$
Quadratic	$n^{2}$
Cubic	$n^{3}$
Exponential	$c^{n}$
Factorial	$n!$

Alt text

Big $\Omega$

Is the lower bound

We say that $f(n) \in \Omega (g(n))$ if there exists a constant $c > 0$ and integer $n_{0}$ such that $f(n) \ge c \cdot g(n)$ for all $n_{0} > n$ .

Big $\Theta$

Is the tight bound.

Big $\Theta$ exists iff Big O == Big $\Omega$
Most simple functions (such as polynomials, exponentials, etc.) have big $\Theta$ bounds.
