Tutorial 2

Adgenda

• Recursion
• Binary Search

Recursion

One recrusion call to deal with LHS, one to deal with RHS

Requires:

• Base case
• Recursive case

Analysing recursive functions

1. Count the operations in a single recursive step
2. Express the algorithm as a mathematical recurrence
3. Compute a bound for the recurrence by expanding the recursive calls or drawing the recursion tree.
   • Will try with both methods

Selection sort example:

if n > 1 then
    maxindex <- 0                   # O(1)
    for i <- 1 to n-1, do
        if A[i] > A[maxIndex] then  #o(4n)
            maxindex <- i
    swap(A[maxIndex], A[n-1])       #O(1)

$$T(n) = \begin{cases} O(1) & \text{if } n = 1\\ O(1) + T(n-1) & \text{if } n > 1 \end{cases}$$

Use the fact that $1+2+3+...+(n-1)+n = n(n-1)/2$ to conclude $T(n)$ is (O(n^{2}))

Binary Search Summary

• This is not a binary recursion type, because we will only execute one of the recursive calls.

$$T(n) = \begin{cases} O(1) & \text{if } n = 0\\ O(1) + T(n/2) & \text{if } x > 0 \end{cases}$$

• Run time: $O(\log n)$

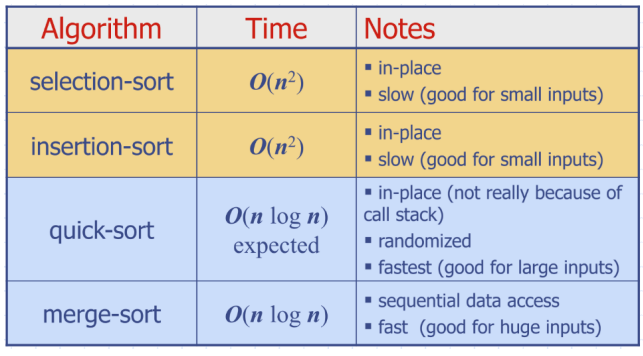

Sorting - Selection sort

• In place sorting - does not require any additional memory space
• Run time: $O(n^{2})$

How it works:

• Iterate over array from start ot end
• Swap the current element with the smallest element to our right

Insertion sort

• Also in place sorting - does not require any additional memory space
• Also has run time of $O(n^{2})$

How it works:

• Iterate over array from start to end
• Compare that element with all elements to the left (previously seen/sorted)
• Insert that element in the correct location

procedure insertionSort(A: list of sortable items)
    for i = 1 to length(A) - 1 do
        currentElement = A[i]
        j = i - 1

        while j >= 0 and A[j] > currentElement do
            A[j + 1] = A[j]
            j = j - 1

        A[j + 1] = currentElement
    end for
end procedure

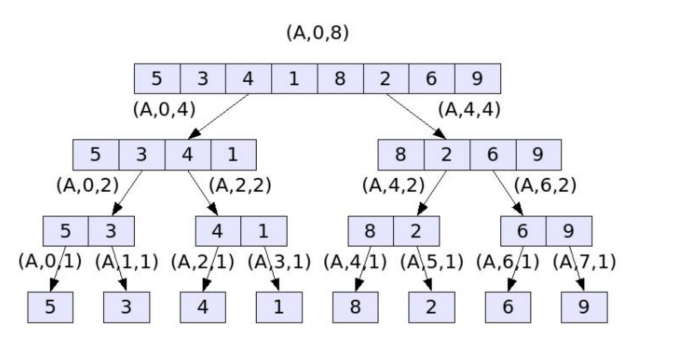

Merge sort

• Run time: $O(n \log n)$
• Split by half each time in first step, no sorting in this process

Quick sort

• randomly select a pivot
  • have all elements $\le$ on LHS, and $>$ on RHS
  • keep splitting with random pivot
  • sort and combine like in merge-sort

Run time:

• can have worst time of $O(n^{2})$ due to the worst case pivot
• Expected case: $O(n \log n)$
• Quick sort can be implemented in place

Tutorial sheet

Questions 1, 2, 6.

Question 1

1. $2^{10} = O(c)$
2. $2\log _{3} (\log _{3} n) = O(\log (\log n))$
3. $100 \log _{2} n$
4. $4n = O(n)$
5. $4n \log_{4}n + 2n = O(n)$
6. $2 ^{\log _{2} n} = n = O(n)$
7. $n^{2} + 10n = O(n^{2})$
8. $n^{2} \log _{2} (n) = n^{2} \log (n)$
9. $n^{3} = O(n^{3})$
10. $2^{n} = O(2^{n})$

Question 2:

• One primitive operations to print from 0 to 9
• Two primitive operations to print from 10 -to 99
• Three primitive operations to print from 100 to 999...
  • this is equivalent to $\log_{10} n$
• Run time: $O(n \log _{10} n)$

Question 3:

• grows in $O(\log n)$ time

Question 6

$$T(n) = \begin{cases} 1 & \text{if } n = 1\\ 3T(n/2) + 2 & \text{if } n > 1 \end{cases}$$

• See solutions, uses geometric sequences and log rule $a^{\log _{b}c} = c^{\log_{b}a}$.

Question 9

• In the worst case, have to check all of the elements.

for x in range (A, length)
    a = A[x]
    b = B[x]

Similar process to Binary search. Have A, B, and x as input

for j in range (A, length)
    if BinarySearch(sortedB, A[j] - x)
        return true         #This is done in log n time
    return false

Run time: $n(\log n + \log n) = 2n(\log n) = O(n \log n)
