Tutorial 5

Stacks
Queues
Trees
- Tree Basics
- Tree Traversal
- Binary Trees

Stacks

Last in first out (LIFO)
pop() and push() are the main methods
Use Arraylist for implementation

Queues

Array Implementation
f: Index at the front of the queue
- increment the from index to remove front index
r: Index at the rear of queue
- increment the rear index to add to end of list
Index of an element (f + i) % len

Trees

Hierarchical Data structure
- good representation is parent directory
Consists of nodes with a parent-child relation
Root: a node without a parent
Internal node: a node with at least one child
External node/leaf: node without children
Ancestors of a node: always goes UP
Descendants: child nodes: always goes DOWN

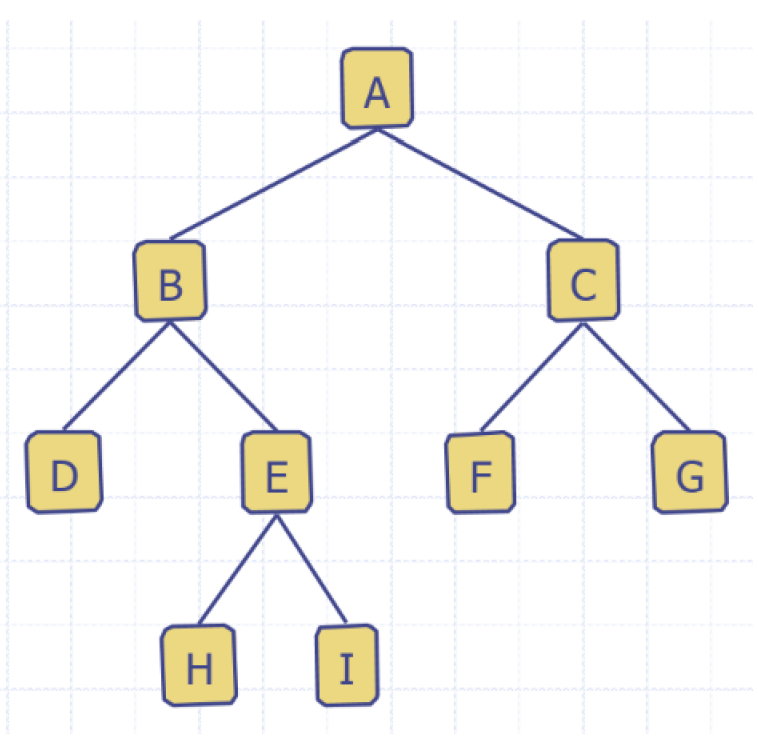

Level

Root is level 0

Depth of Node/Tree

Number of descendants from root
E is depth 2

Height of Node/Tree

Number of ancestors from leaf
E is of height 1

Alt text

Subtree

Tree consisting of a node and its descendants
E's subtree is [E: H, I]

Tree ADT methods

Method	Description
`getElement()`	Returns element stored at this position
`size()`	Returns the numer of positions in the tree
`isEmpty()`	Indicates if the tree is empty
`iterator()`	Returns an iterators of all elements
`positions()`	Returns iterable collection of all positions
`root()`	Returns position of the tree's root
`parent(p)`	Returns position of parent
`children()`	Return's iterable collection of p's children

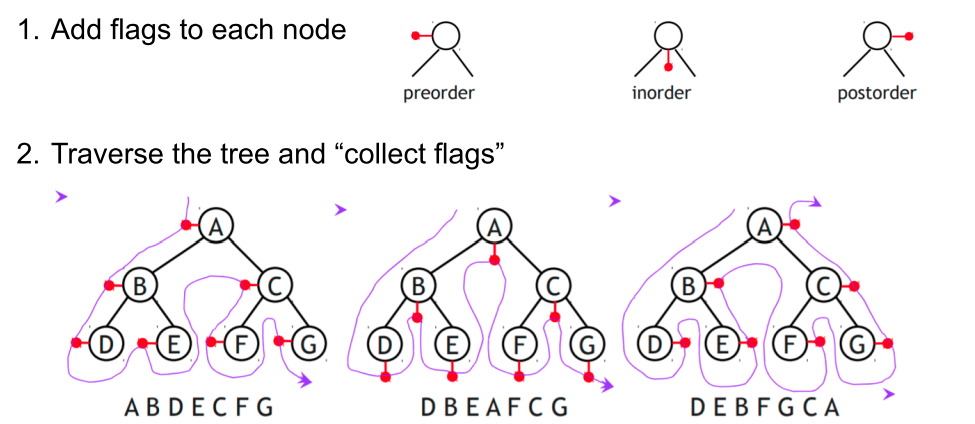

Tree traversal

In order
Pre Order
- Root, left-right
Post Order
left, right, root

Alt text

Binary Tree terminology

Full level
- Level $i$ contains $2^{i}$ nodes
Complete tree
- for height h
- levels $0, 1, 2, ... h$ are full
- Level $h$ , all nodes are as far left as possible
Proper/full Binary tree
- Each level (besides leaf nodes) have two children

Binary tree performance:

var	description
$n$	number of nodes
$e$	number of external nodes
$i$	number of internal nodes
$h$	height

Performance:

$h= o(\log n)$ (when at least two nodes)

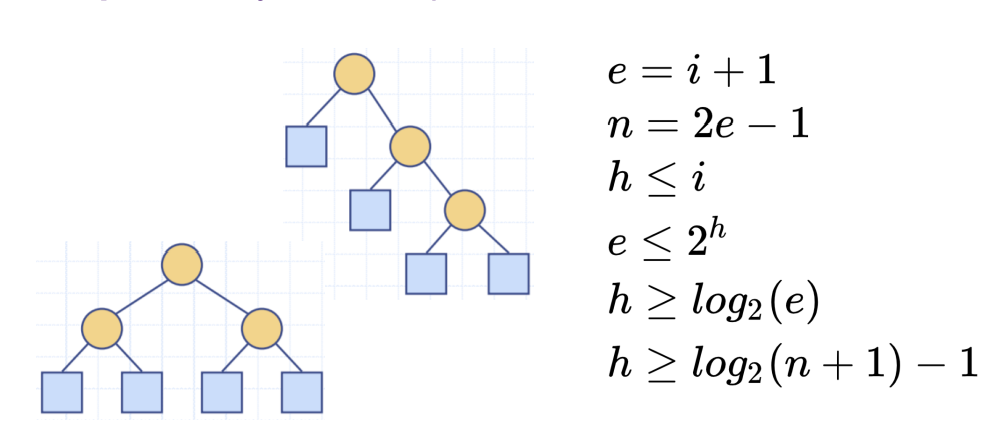

Proper Binary tree properties

Alt text
