AVL Trees

Finding the imbalanced node

• Look at the height of the left and the right subtrees. If the height difference is more than 1 between both subtrees, then the node is imbalanced.

Insert into an AVL tree

• Regular insert if no imbalance
• Tri-node restructuring if there is an imbalance

Tri node restructuring

• Only four cases of tri-node restructuring:

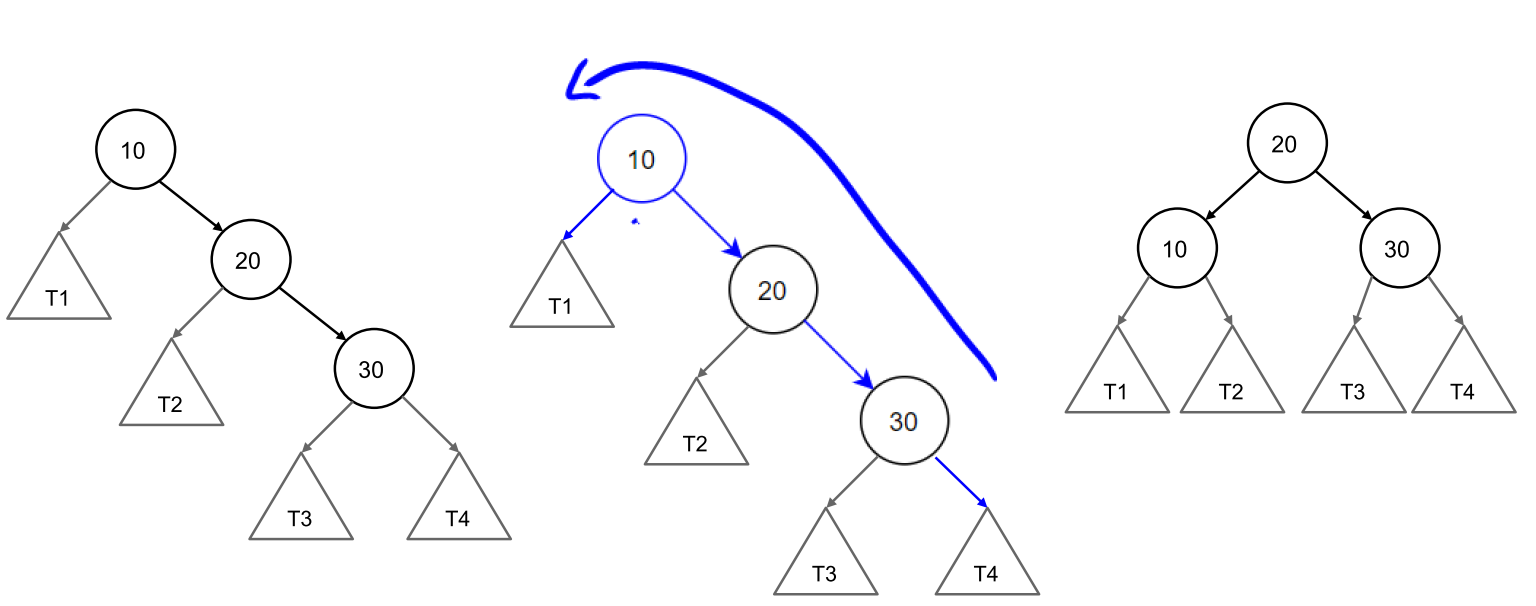

Right-right rebalance:

• push the imbalanced node down

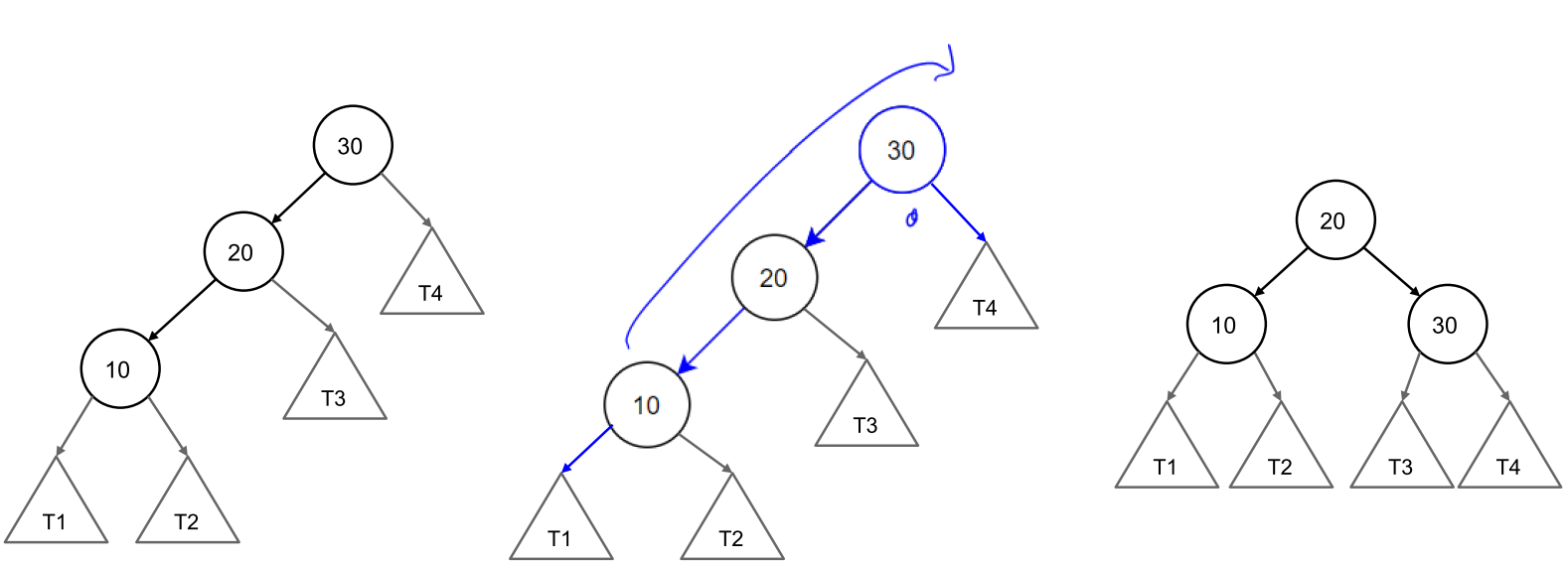

Left-left rebalance:

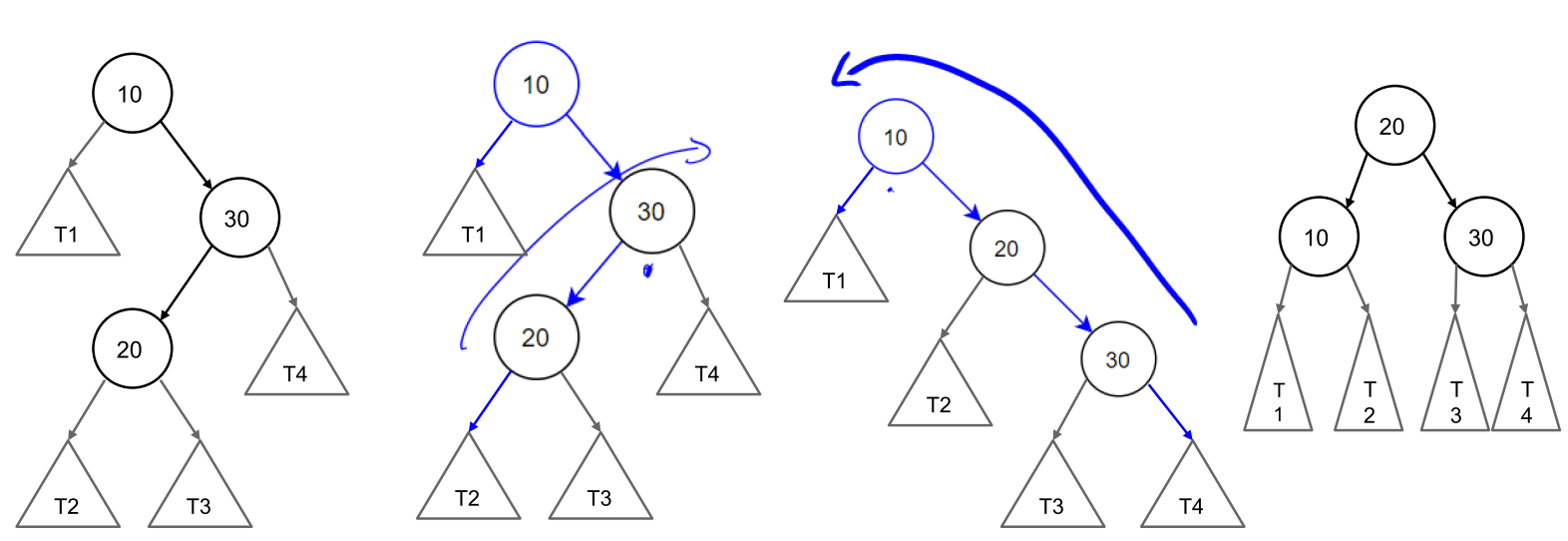

Right-left

• lift 20 up and drag 20 down to create a right-right imbalance

Delete from an AVL tree

1. Remove from tree as if a Binary search tree
2. From the deleted node, move up to the first unbalanced node.
3. Tri-node Restructuring to restore height property

Performance:

• Height: $O(\log n)$
• Space $O(n)$

Runtime

• Single restructure: O(1)
• Searching: O(log n) (IN BST, O(n))
• Insertion: O(log n) (IN BST, O(n))
• Removal: O(log n) (IN BST, O(n))

Splay tree

• Nearly balanced binary search tree
  • no rules on height
• faster access to most recently used keys
• all operations require a 'splay'

Finding node

• same as a binary search tree

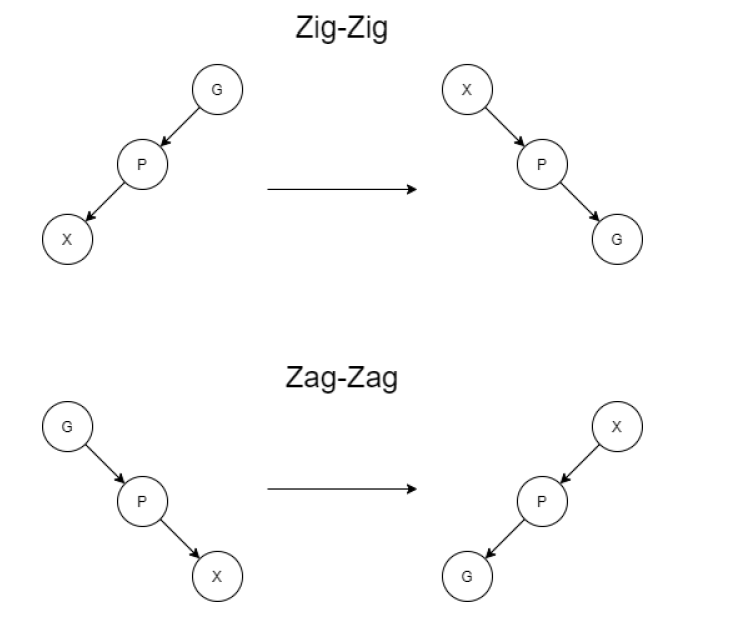

• 'Splay' the node up to the root
• Even if you don't find the node, still splay the whole tree
  • i.e. searched item becomes the new root

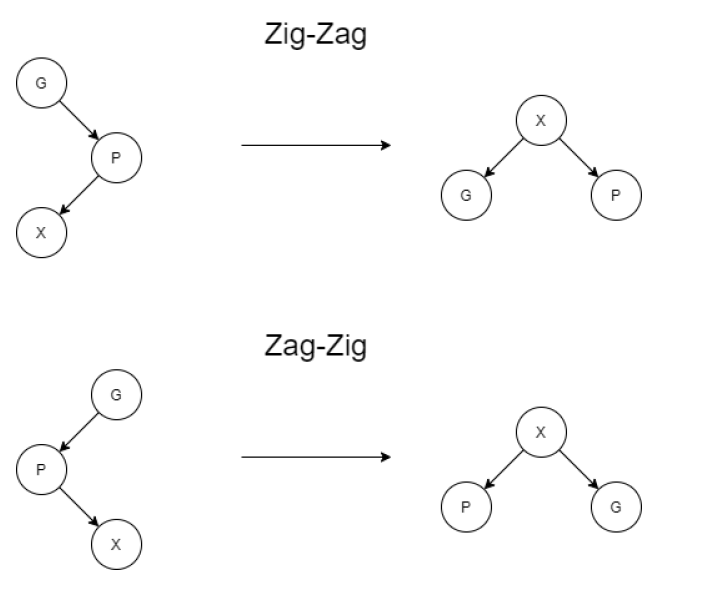

Zig-zag: rotate the tree to the left and swap the root with the right child Zag-zig: rotate the tree to the right and swap the root with the left child

Insert into the splay tree

1. INsert into the tree.
2. 'splay' the new inserted node to the root

Remove from a Splay tree

1. Remove a node like a Binary Search Tree
2. “Splay” a up to the root

• If you don't find the node: Splay the node that ended your search
• If you do find the node: Splay the parent of the removed node

2-4 trees

• Balanced binary search trees
• Nodes can have:
  • 1 key, 2 children
  • 2 keys, 3 children
  • 3 keys, four children
