Module 5: Database Security

Access control mechanisms

Database access control is a method of allowing access to sensitive data only to users who are authorised to access such data and to restrict access to unauthorized persons. It includes two main components:

• Authentication: verifying the identity of a person who is accessing your database
• Authorization: determining whether a user should be allowed to execute the transaction they are attempting.

User Accounts

• User must log in using assigned username and password

Login session

• Sequence of database operations by a certain user
• Recorded in system log (also used for recovery and other control functions, not just security)

Database audit

• Reviewing log to examine all accesses and operations applied during a certain time period

Access Control Mechanisms

Authorization: determining whether a user should be allowed to execute the transaction they are attempting.

1. Discretionary Access Control (DAC)

• Used to grant privileges to users

2. Mandatory Access Control (MAC)

• Classify data and users into various security classes
• Implement security policy

3. Role-based Access Control (RBAC)

• Users can be assigned with roles, and then DAC or MAC can be applied

Discretionary Access Control

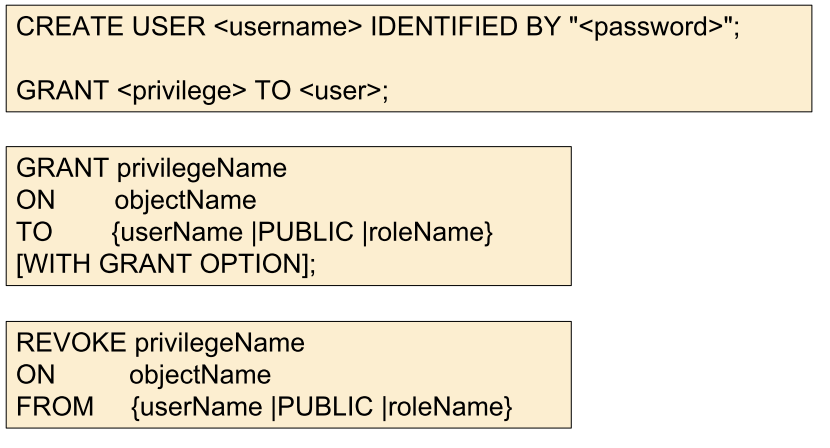

Based on Granting and Revoking privileges

Account level: privileges specified for each account, independent of relations in the account

• Create schema, create table, create view; alter/drop tables; modify (insert, delete, update tuples) and select privileges

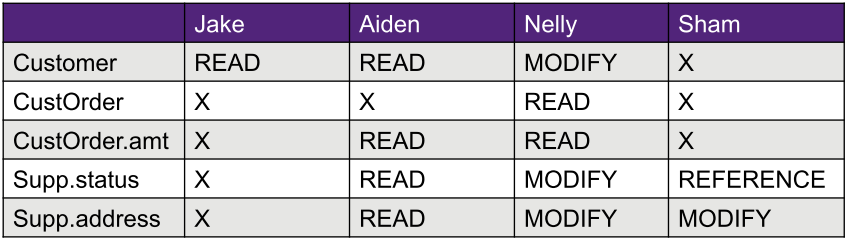

Relation level: privileges for each relation or view

• Can be specified at attribute level too

• Select (retrieval or read) privilege

• Modification (insert, deleted and update) privilege

• References privilege

• Each relation R is assigned an owner account

• Owners can grant (select, modification and references) privileges to other users on any owned relation

Mandatory Access Control (MAC)

• Classify data and users into various security classes
• Implement security policy

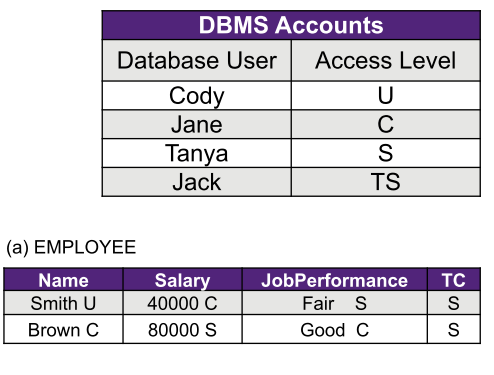

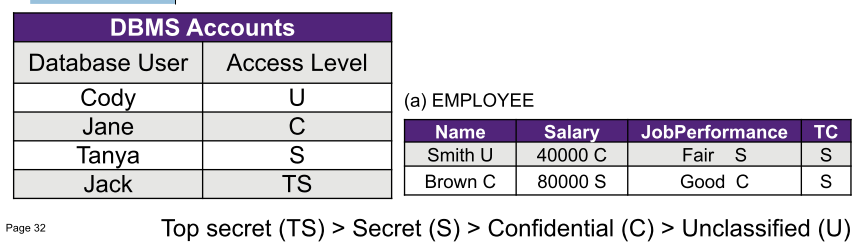

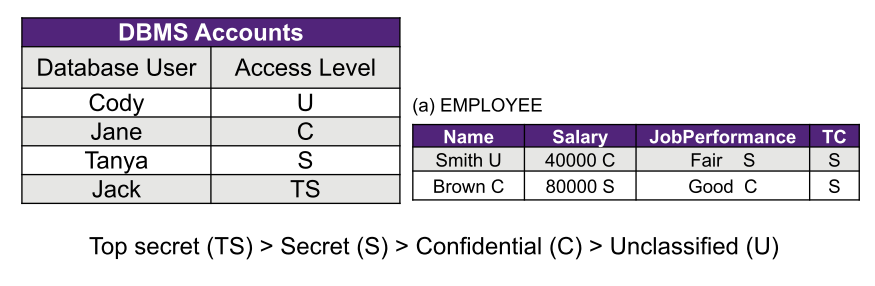

Data and users are associated with security classes

• Typical security classes
  • Top secret (TS)
  • Secret (S)
  • Confidential (C)
  • Unclassified (U)

Simple Security Property

• A subject can’t read information from an object that has a higher sensitivity label than the subject
• Also known as: no read up, or NRU

Example:

• Database user Cody with access level Unclassified cannot view Smith’s salary which requires Confidential level access

• A subject can’t write information to an object that has a lower sensitivity label than the subject
• Also known as: no write down, or NWD
• This is to prevent information from flowing from higher to lower classifications

Example:

• Database user Tanya with access level Secret cannot insert a new tuple with information about Smith with Confidential level access

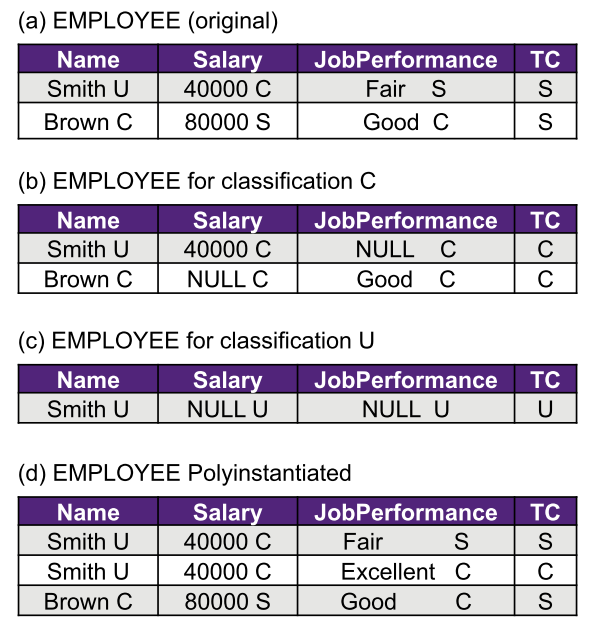

Inference attacks and polyinstantiation

• Suppose a user with security clearance C tries to update the value of JobPerformance for Smith from NULL to ‘Excellent’ in (b)

UPDATE EMPLOYEE
SET JobPerformance = ‘Excellent’
WHERE Name = ‘Smith’;

• System should not reject it otherwise user could infer that some nonnull value exists This is an example of inferring information through a covert channel
• Solution is polyinstantiation

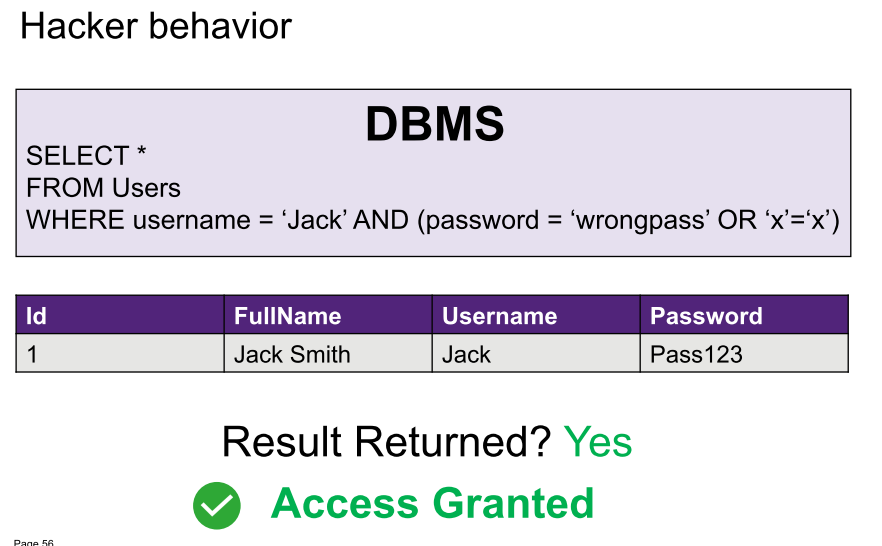

SQL Injection

• The client’s input is directly used in the SQL query
• The SQL query needs to return a tuple in the User table for the client to be authenticated

Protection Techniques

SQL injection attacks can occur when SQL statements are used in programs

Bind variables (using parameterized statements)

• Protects against injection attacks
• Improves performance

Filtering input (input validation)

• Remove escape characters from input strings
• Escape characters can be used to inject manipulation attacks

Function security

• Standard and custom functions should be restricted
